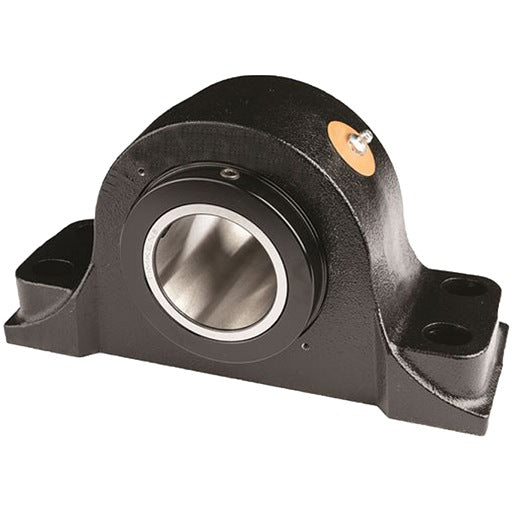

Timken E-P4B-TRB-3 Pillow Block Roller Bearing Unit - 3 in Bore Dia. - E-P4B-TRB-3

Product Description

The Timken E-P4B-TRB-3 is a pillow block roller bearing unit designed for heavy-duty applications. This unit features a bore diameter of three inches and is made from durable cast iron material. It is a non-expansion bearing which provides stability and strength under various operational conditions.

• Designed to handle radial loads effectively.
• High-performance triple-barrier seals enhance grease retention.
• Set screws with nylon patches minimize back out during severe conditions.

Product Highlights

The Timken E-P4B-TRB-3 is suitable for industrial settings where reliable performance and durability are required.

Product Information

Standard Information

• Brand: Timken
• MPN: E-P4B-TRB-3

Technical Specifications

• Bore Diameter: 3 in
• Bearing Material: Bearing Steel
• Housing Material: Cast Iron
• Duty Type: Heavy Duty
• Seal Type: Triple Barrier Seal
• Max Rpm: 5181 rpm
• Radial Dynamic Load Capacity: 12300 lbf
• Operating Temperature Range: -30 to +180 °F
