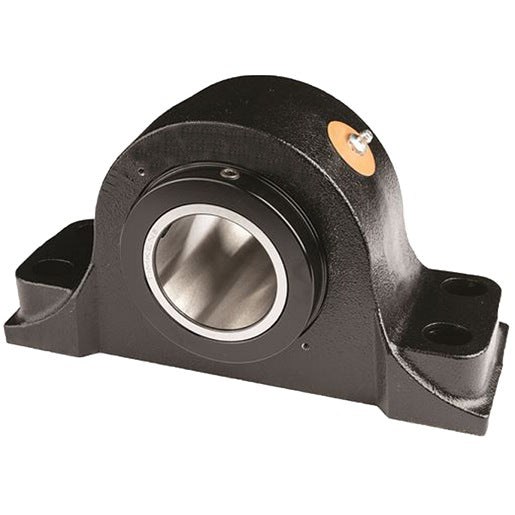

Timken E-P4B-TRB-215/16 Pillow Block Roller Bearing Unit - 2-15/16 in Bore Dia.

Product Description

The Timken E-P4B-TRB-215/16 is a pillow block roller bearing unit designed for heavy-duty applications with a bore diameter of two and fifteen-sixteenths inches. It features a cast iron housing that provides strength and durability.

• Heavy-duty non-expansion design for fixed applications
• Triple-barrier seals enhance grease retention
• E-coat finish provides corrosion resistance

Product Highlights

This pillow block roller bearing unit is built for reliability and efficiency in demanding environments.

Product Information

Standard Information

• Brand: Timken
• MPN: E-P4B-TRB-215/16

Technical Specifications

• Bore Diameter: 2-15/16 in
• Overall Length: 12 in
• Overall Height: 6.25 in
• Overall Width: 4.5 in
• Weight: 28.05 lbs
• Max RPM: 5181 rpm
• Radial Dynamic Load Capacity: 12300 lbf
• Radial Static Load Capacity: 61200 lbf
• Seal Type: Triple Barrier Seal
• Housing Material: Cast Iron
• Lubrication Type: Lubrication Fitting
• Operating Temperature Range: -30 to +180 °F
• Duty Type: Heavy Duty
• Type Of Bearing: Tapered Roller
