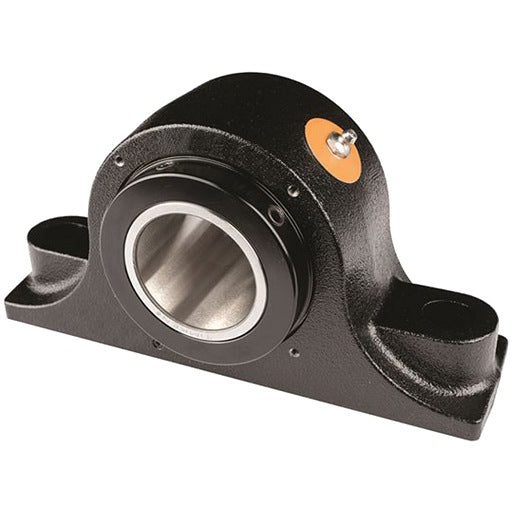

Timken E-P2B-TRB-3 Pillow Block Roller Bearing Unit - 3 in Bore Dia. Heavy Duty Non-Expansion Bearing

Product Description

The Timken E-P2B-TRB-3 is a pillow block roller bearing unit designed for heavy-duty applications. This unit features a three-inch bore diameter and is constructed of cast iron material, ensuring durability and strength. It serves as a fixed, non-expansion bearing, making it suitable for various industrial settings.

• Heavy duty design for improved load capacity
• Triple barrier seals enhance grease retention and prevent debris ingress
• Corrosion-resistant electric deposition coating

Product Highlights

This bearing unit is ideal for applications requiring reliable performance and excellent protection against environmental factors.

Product Information

Standard Information

• Brand: Timken
• Part Number: 04305305

Technical Specifications

• Bore Diameter: 3 inches
• Overall Length: 12 inches
• Overall Width: 4.5 inches
• Overall Height: 6.25 inches
• Weight: 29.37 lbs
• Max RPM: 5181 rpm
• Bolt Size: 0.75 inches
• Radial Static Load Capacity: 61200 lbf
• Radial Dynamic Load Capacity: 12300 lbf
• Seal Type: Triple Barrier Seal
• Duty Type: Heavy Duty
• Finish Coating: E-coat
• Locking Device: Set Screw
• Lubrication Type: Lubrication Fitting
• Operating Temperature Range: -30 to +180 °F
