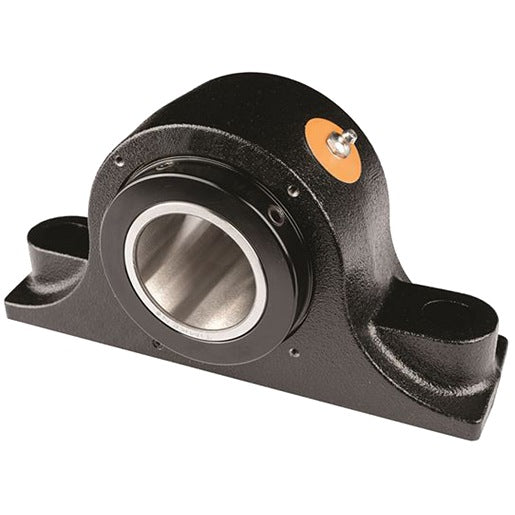

Timken E-P2B-TRB-27/16 Pillow Block Roller Bearing Unit - 2-7/16 in Bore Dia.

Product Description

The Timken E-P2B-TRB-27/16 is a pillow block roller bearing unit designed for high performance in demanding applications. This unit features a bore diameter of two and seven-sixteenths inches and is made from cast iron for durability. Its design includes heavy-duty components for reliable function in tough environments.

• Bore diameter: 2-7/16 inches
• Heavy-duty cast iron housing
• Triple barrier seal for enhanced protection

Product Highlights

This pillow block unit combines efficient design with industry-leading sealing technology to effectively prevent dirt, water, and grease loss.

Product Information

Standard Information

• Brand: Timken
• Manufacturer Catalog No: 00825

Technical Specifications

• Weight: 23.45 lbs
• Length: 12.3 inches
• Width: 8.05 inches
• Height: 7.5 inches
• Bore Type: Round
• Seal Type: Triple Barrier Seal
• Duty Type: Heavy Duty
• Radial Static Load Capacity: 54000 lbf
• Radial Dynamic Load Capacity: 11600 lbf
• Operating Temperature Range: -30 to +180 °F
• Expansion Type: Non-Expansion Bearing (Fixed)
• Finish Coating: E-coat
• Locking Device: Set Screw
• Housing Material: Cast Iron
• Bearing Material: Bearing Steel
• Lubrication Type: Lubrication Fitting
• Overall Length: 10.5 inches
• Overall Height: 5.7188 inches
• Overall Width: 4.0 inches
• Base to Bore Centerline: 2.75 inches
