Timken E-P2B-TRB-23/16 Pillow Block Roller Bearing Unit - 2-3/16 in Bore Dia.

Product Description

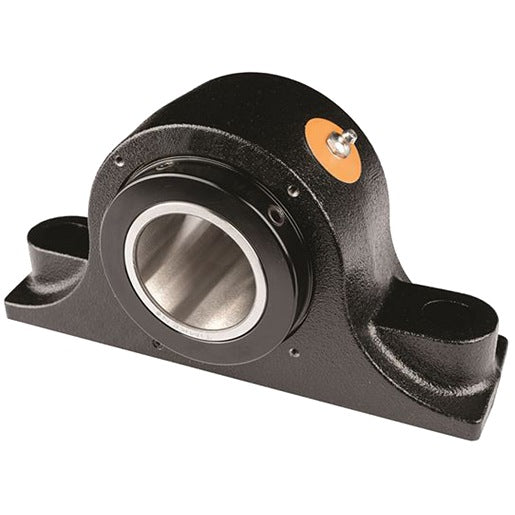

The Timken E-P2B-TRB-23/16 is a pillow block roller bearing unit designed for heavy-duty applications. It features a bore diameter of two and three-sixteenths inches, housed in a cast iron material that offers durability and strength. This non-expansion bearing is ideal for scenarios where fixed positioning is necessary. The triple-barrier seals enhance grease retention and provide effective protection against contaminants.

• Industry-leading triple-barrier seals
• Corrosion-resistant e-coated housing
• Set screws with nylon patch for secure locking

Product Highlights

This bearing unit is engineered for reliability and efficiency in various industrial applications.

Product Information

Standard Information

• Brand: Timken
• MPN: E-P2B-TRB-23/16

Technical Specifications

• Bore Diameter: 2-3/16 in
• Overall Length: 9.6250 in
• Overall Width: 3.7500 in
• Overall Height: 5.0000 in
• Bolt Size: 0.625 in
• Weight: 14.66 lbs
• Max RPM: 3454 rpm
• Radial Dynamic Load Capacity: 10900 lbf
• Radial Static Load Capacity: 48200 lbf
• Operating Temperature Range: -30 to +180 °F
• Material: Cast Iron
• Type of Bearing: Mounted Tapered Roller Bearing
• Seal Type: Triple Barrier Seal
• Relubricatable: Yes
• Standards Met: ANSI/ABMA, ISO
