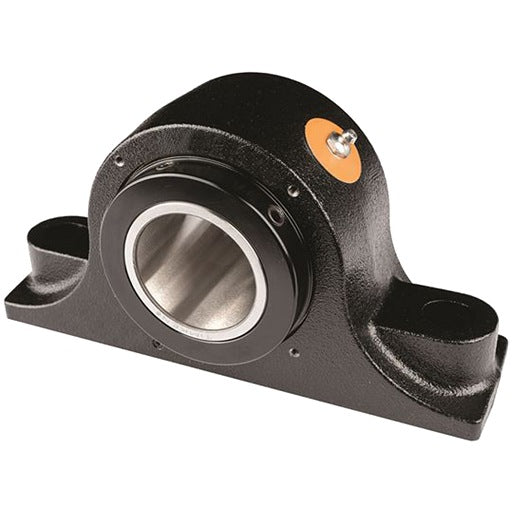

Timken E-P2B-TRB-21/2 Pillow Block Roller Bearing Unit - 2-1/2 in Bore Dia.

Product Description

The Timken E-P2B-TRB-21/2 is a pillow block roller bearing unit designed for heavy-duty applications. Its bore diameter is two and one-half inches, providing reliable support for various rotating structures.

• High performance with triple-barrier seals
• Cast iron housing for durability
• Set screw design minimizes wear

Product Highlights

This fixed non-expansion bearing unit features advanced sealing technology, making it effective against moisture and contaminants.

Product Information

Standard Information

• Brand: Timken
• Part Number: 04305299

Technical Specifications

• Bore Diameter: 2-1/2 in
• Overall Length: 10.5000 in
• Overall Width: 4.0000 in
• Overall Height: 5.7188 in
• Weight: 22.59 lbs
• Max RPM: 3454 rpm
• Duty Type: Heavy Duty
• Seal Type: Triple Barrier Seal
• Bearing Material: Bearing Steel
• Housing Material: Cast Iron
• Radial Static Load Capacity: 54000 lbf
• Radial Dynamic Load Capacity: 11600 lbf
• Operating Temperature Range: -30 to +180 °F
