Timken Co. L630310 Tapered Roller Bearing Single Cup

Product Description

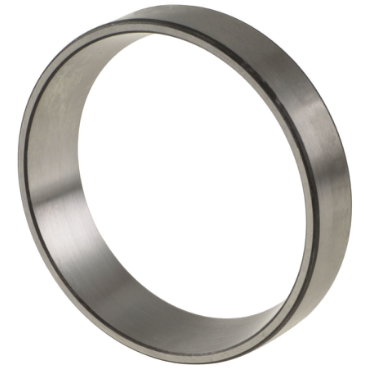

The Timken Co. L630310 is a tapered roller bearing single cup designed for optimal performance in various applications. This bearing cup measures seven and nine-sixteenths inches in outer diameter and zero point seven four eight inches in width, making it suitable for different types of machinery.

• Standard tolerance for reliable performance
• Built from durable steel for longevity
• Designed for axial and radial loads

Product Highlights

The L630310 bearing cup is designed for easy installation and secure fit, ensuring effective transfers of loads.

Product Information

Standard Information

• Brand: Timken Co.
• Part Number: 101191792

Technical Specifications

• Tolerance: Standard
• O.D. Type: Straight
• Origin: Cups
• Series: L630300
• Material: Steel
• Bearing Type: Single Cup
• Cup Width: 0.748 inches
• Radial Rating: 7693.1 lbf
• Cup Type: Single Cup
• O.D.: 7.5625 inches
• Housing Fillet Radius [Max]: 0.08 inches
• K Factor: 1.404131
• Weight: 1.215 pounds
• EAN or UPC: 53893656038
