Timken Co. JLM506849-3 Steel Unmounted Tapered Roller Bearing Cone

Product Description

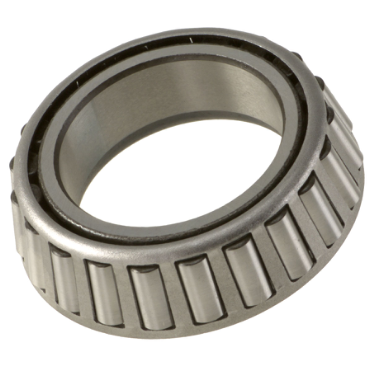

The Timken Co. JLM506849-3 is a steel unmounted tapered roller bearing cone designed for high-performance applications.

• 2.165 inch inside diameter
• 0.906 inch width
• Single row configuration

Product Highlights

This tapered roller bearing cone offers improved rotational accuracy and rigidity through advanced geometry and stringent manufacturing processes.

Product Information

Standard Information

• Brand: Timken Co.
• Part #: 101191046

Technical Specifications

• Roller Material: Steel
• Cone Width: 0.905 inch
• Component: Inner Ring
• Material: Steel
• Inner Ring Width: 0.906 inch, 23 mm
• Bearing Type: Unmounted Roller Bearing
• Enclosure: Open
• Cage Material: Steel
• Shaft Fillet Radius Max: 0.06 inch, 1.5 mm
• Bore Type: Cylindrical
• Width: 0.906 inch, 23 mm
• Cage Type: Stamped Window
• Series: LM506800
• I.D.: 2.165 inch, 55 mm
• Precision Class: ABMA Class C
• No. of Rows: Single
• Cone Type: Single Cone
• Weight: 0.861 lb
• EAN or UPC: 53893626444
