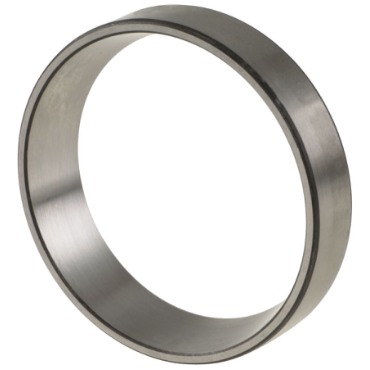

Timken Co. HM259010 Steel Unmounted Tapered Roller Bearing Cup

Product Description

The Timken Co. HM259010 Steel Unmounted Tapered Roller Bearing Cup is designed for heavy-duty applications. It offers a reliable solution for managing both radial and axial loads effectively. This tapered roller bearing cup is part of Timken's extensive line of bearings known for their performance and durability.

• Outside diameter of seventeen point six two five inches.
• Width of two point six eight eight inches.
• Single-row configuration.

Product Highlights

This bearing cup is engineered for superior strength and performance in various demanding environments.

Product Information

Standard Information

• Brand: Timken Co.
• Part #: 100722322

Technical Specifications

• Outer Diameter (O.D.): 17.625 inches, 447.675 mm
• Width: 2.688 inches, 68.26 mm
• Rolling Element: Tapered
• Component: Outer Ring
• Tolerance: Standard
• Radial Rating: 83550.6 lbf
• Precision Class: ABMA Class 2
• Bearing Type: Unmounted Roller Bearing
• Cup Type: Single Cup
• Material: Steel
• No. of Rows: Single
• Weight: 27.01 lb
• K Factor: 1.744459
