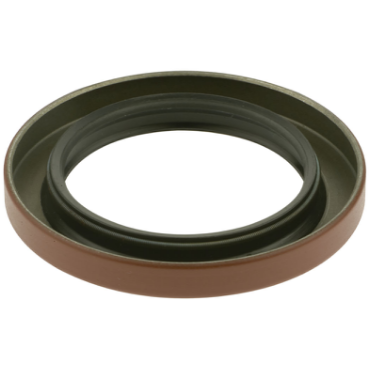

Timken Co. 473490 Dual Lip with One Spring Inch 3.150 Housing Bore

Product Description

The Timken Co. 473490 is a Dual Lip with One Spring internal shaft seal designed for reliable performance. This seal features a shaft diameter of 1.562 inches and a housing bore of 3.150 inches. It is suitable for general-purpose applications and can effectively manage pressure up to seven psi.

• Internal shaft seal with dual lip and one spring design
• Temperature range from -40 °F to 225 °F
• Constructed with nitrile lip material for durability

Product Highlights

This product is ideal for various sealing applications, providing efficient performance under diverse conditions.

Product Information

Standard Information

• Brand: Timken Co.
• Part #: 101096858

Technical Specifications

• Shaft Diameter: 1.562 in
• Housing Bore Diameter: 3.15 in
• Width: 0.312 in
• Seal Application: General Purpose
• Pressure: 7 psi
• Spring Material: Carbon Steel Garter
• Lip Material: Nitrile
• Lip Style: Internal
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 225 °F
• Cover/Compensation Ring/Plate Required: No
• Seal Design: Bonded Design
• Construction: 47
• Misalignment & Runout: 0.015@800, 0.010@4200
• Case Construction: Steel Case w/o Inner Case
• EAN or UPC: 53893494883
