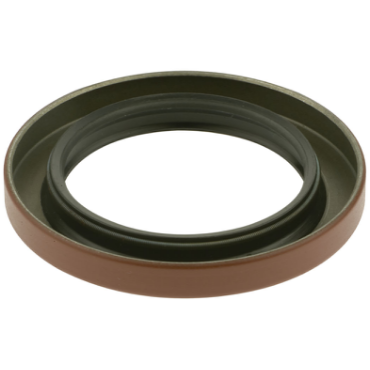

Timken Co. 470682 Dual Lip with One Spring

Product Description

The Timken Co. 470682 is a dual lip shaft seal designed for general-purpose applications. This seal features a bonded design and is manufactured to ensure a reliable fit. The internal spring mechanism helps maintain proper sealing and functionality in various working conditions.

• 1.562 inches shaft diameter
• 2.623 inches housing bore
• 0.312 inches width

Product Highlights

Ideal for applications requiring sealing against contamination and loss of lubricant.

Product Information

Standard Information

• Brand: Timken Co.
• Part Number: 100754314

Technical Specifications

• Seal Design: Bonded Design
• Construction: 47
• Seal Application: General Purpose
• Lip Style: Internal
• Misalignment & Runout (In. @ Feet Per Minute): 0.015@800, 0.010@4200
• Lip Material: Nitrile
• Surface Speed [Nom]: 3,000 ft/min
• Inch/Metric: Inch
• Housing Bore Diameter: 2.623 inches
• Shaft Diameter: 1.562 inches
• Spring Material: Carbon Steel Garter
• Case Construction: Steel Case without Inner Case
• Temperature Range [Max]: 225 °F
• Lip Type: Dual Lip w/One Spring
• Cover/Compensation Ring/Plate Required: No
• Temperature Range [Min]: -40 °F
• Pressure: 7 psi
• Weight: 0.073 LB
• EAN or UPC: 53893491141
