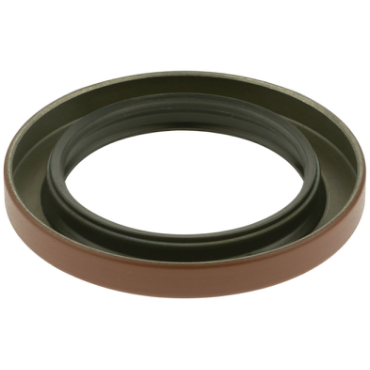

Timken Co. 417598V Dual Lip with One Spring

Product Description

The Timken Co. 417598V is a dual lip shaft seal designed for various industrial applications. This seal has a shaft diameter of seven and five-eighths inches and a housing bore diameter of nine and one-eighth inches. It is suitable for use in environments requiring reliable sealing under pressure.

• Dual lip design with one spring
• Temperature range from negative forty degrees Fahrenheit to four hundred degrees Fahrenheit
• Constructed with fluoroelastomer - Viton for enhanced durability

Product Highlights

This dual lip shaft seal provides effective sealing for rotating shafts, helping prevent fluid leakage and contamination.

Product Information

Standard Information

• Brand: Timken Co.
• Part Number: 101096628

Technical Specifications

• Shaft Diameter: 7.625 inches
• Housing Bore Diameter: 9.125 inches
• Width: 5/8 inches
• Pressure Rating: 7 psi
• Temperature Range (Max): 400 °F
• Temperature Range (Min): -40 °F
• Lip Type: Dual Lip w/One Spring
• Seal Design: Assembled Design
• Surface Speed (Nom): 3,000 ft/min
• Case Construction: Steel Case w/Inner Case
• Spring Material: Carbon Steel Garter
• Lip Material: Fluoroelastomer - Viton
• Misalignment & Runout: 0.015 @ 800, 0.010 @ 4200
• EAN or UPC: 53893507132
