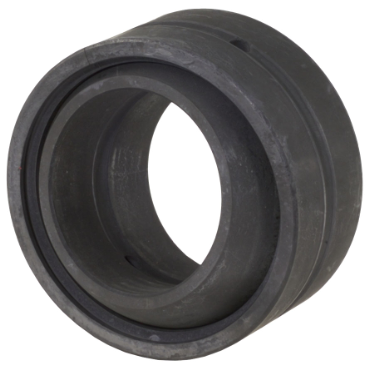

Timken Co. 35SF56-TT Type SF Spherical Plain Bearing

Product Description

The Timken Co. 35SF56-TT Type SF Spherical Plain Bearing is designed for heavy-duty applications. It is ideal for use in mining and construction equipment, as well as hydraulic and pneumatic actuators. This bearing has a strong static load rating, making it suitable for demanding environments.

• Dimensions: Inner Diameter 3.5 inches, Outer Diameter 5.5 inches
• Double sealed design for enhanced protection
• Constructed from phosphate treated materials for increased durability

Product Highlights

This bearing offers reliability and strength in high-load applications.

Product Information

Standard Information

• Brand: Timken Co.
• Part Number: 100740358

Technical Specifications

• Outer Ring Width: 2 5/8 inches
• Inner Ring Width: 3 1/16 inches
• Static Load Rating [Max]: 410000 lbf
• O.D.: 5.5 inches
• Self-Lubricating: No
• Outer Race Material: Phosphate Treated, Coated w/MoS2
• Ball Material: Phosphate Treated, Coated w/MoS2
• I.D.: 3.5 inches
• Enclosure: Double Sealed
• Spherical Diameter: 5.04 inches
• Weight: 10.98 lb
• EAN or UPC: 87796019805
