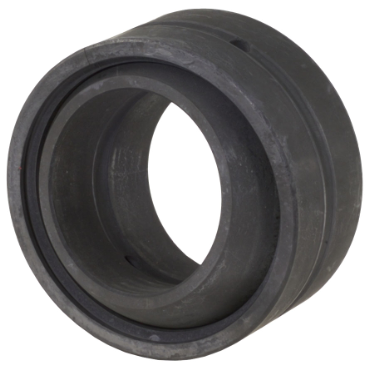

Timken Co. 15SF24 Type SF Spherical Plain Bearing

Product Description

The Timken Co. 15SF24 is a Type SF Spherical Plain Bearing designed for use in various applications. This bearing is suitable for mining equipment, construction equipment, and hydraulic or pneumatic actuators.

• Unsealed spherical plain bearing
• Suitable for heavy-duty applications
• High load ratings with durable construction

Product Highlights

The Timken 15SF24 provides reliable performance across demanding environments. It features a phosphate-treated coating for enhanced durability, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: Timken Co.
• Part Number: 100740342

Technical Specifications

• I.D.: 1 1/2 in
• O.D.: 2.4375 in
• Inner Ring Width: 1 5/16 in
• Outer Ring Width: 1 1/8 in
• Enclosure: Unsealed
• Bore Size [Max]: 2.4372 in
• Bore Size [Min]: 2.436 in
• Ball Material: Phosphate Treated, Coated w/MoS2
• Outer Race Material: Phosphate Treated, Coated w/MoS2
• Static Load Rating [Max]: 75000 lbf
• Dynamic Load Rating: 24300 lbf
• Weight: 0.964 LB
