Timken 93825-30000 93825 3 TKN Power 8-1/4 in Diameter Bore Replacement MPN

Product Description

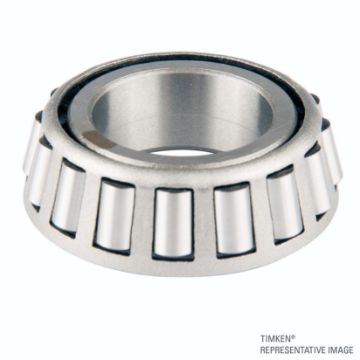

Timken 93825-30000 is a single row straight bore tapered roller bearing cone designed for use with tapered roller bearings. This bearing cone features an eight and one-quarter inch bore, a cone width of two and one-half inches, and a maximum shaft fillet radius of zero point seventeen inches. The dynamic load capacity is one hundred sixty-four thousand pounds and the static load capacity is two hundred ninety thousand pounds.

• High performance with radial and axial load management.
• Engineered for durability and compact design.
• Precision class three for reliable performance.

Product Highlights

This product is ideal for applications requiring high stiffness and low runout, ensuring accurate installation and extended service life.

Product Information

Standard Information

• Brand: Timken
• Type: Single Row Straight Bore

Technical Specifications

• Series: 93000
• Bore Diameter: 8-1/4 in
• Cone Width: 2-1/2 in
• Maximum Shaft Fillet Radius: 0.17 in
• Cage Material: Steel
• Load Capacity: 164000 lb Dynamic / 290000 lb Static
• Suitable For Use With: Tapered Roller Bearing
