Timken 6302-2RS-C3 Radial/Deep Groove Ball Bearing - Straight Bore, 15 mm ID, 42 mm OD, 13 mm Width, C3 Internal Clearance

Product Description

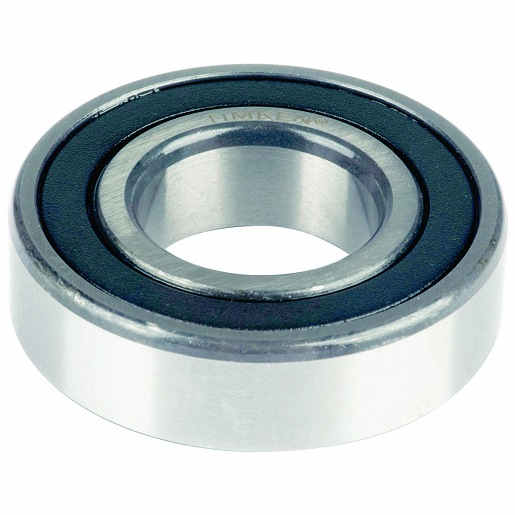

The Timken 6302-2RS-C3 Ball Bearing is a high-quality radial and deep groove ball bearing. It features a straight bore, with a bore diameter of fifteen millimeters, an outer diameter of forty-two millimeters, and a width of thirteen millimeters. This ball bearing is double sealed to prevent contamination and provide better lubricant retention. The internal clearance rating is C3, ensuring optimal performance under various operating conditions.

• Super finished raceways enhance performance
• Quiet operations for reduced noise levels
• ISO standard interchangeable dimensions

Product Highlights

This bearing is suitable for applications requiring high precision and reliability, such as in electric motors and industrial machinery.

Product Information

Standard Information

• Brand: Timken
• MPN: 6302-2RS-C3

Technical Specifications

• Series: 6300
• Row Type: Single
• Bore Type: Straight
• Closure Type: Double Sealed
• Product Type: Radial & Deep Groove Ball Bearings
• Bore Diameter: 15 mm
• Outside Diameter: 42 mm
• Overall Width: 13 mm
• Internal Clearance: C3
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Ball
• Inner Ring Width: 0.512 in
• Max Operating Temperature: 120° C
