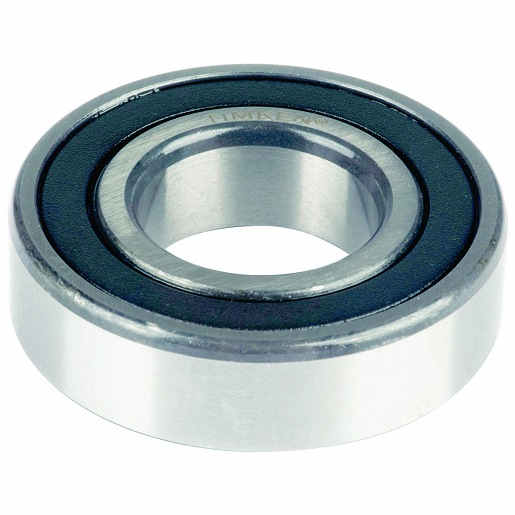

Timken 6213-2RS-C3 Radial/Deep Groove Ball Bearing - Straight Bore, 65 mm ID, 120 mm OD, C3 Internal Clearance

Product Description

The Timken 6213-2RS-C3 is a radial and deep groove ball bearing designed for reliability in various applications. With a straight bore, it has an inner diameter of sixty-five millimeters and an outer diameter of one hundred twenty millimeters. This bearing is double sealed to protect against contaminants and features a C3 internal clearance.

• Double sealed design for improved protection
• Suitable for electric motor applications
• Meets ISO standard dimensions

Product Highlights

This bearing offers quiet operation and high performance in standard applications.

Product Information

Standard Information

• Brand: Timken
• MPN: 6213-2RS-C3

Technical Specifications

• Series: 6200
• Weight: 2.183 lbs
• Row Type: Single
• Bore Type: Straight
• Closure Type: Double Sealed
• Product Type: Radial & Deep Groove Ball Bearings
• Bore Diameter: 65 mm
• Outside Diameter: 120 mm
• Overall Width: 23 mm
• Inner Ring Width: 0.906 in
• Max Operating Temperature: 120° C
• Rolling Element: Ball
• Precision Class: ISO Normal/ABEC 1
• Ball Bearing Material: Steel
• Snap Ring Included: Without Snap Ring
