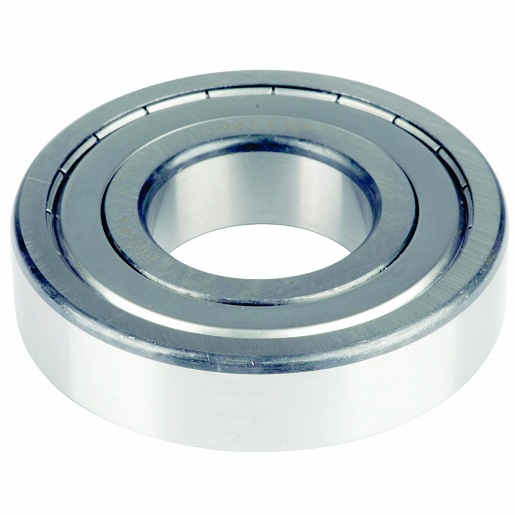

Timken 6204-Z-C3 Radial/Deep Groove Ball Bearing - Straight Bore, 20 mm ID, 47 mm OD, 14 mm Width, Without Snap Ring

Product Description

The Timken 6204-Z-C3 is a radial/deep groove ball bearing designed for various applications requiring reliable performance. With a straight bore design, it has an inner diameter of twenty millimeters and an outer diameter of forty-seven millimeters, making it suitable for multiple installations.

• Single shielded design
• Compatible with ISO standards
• Electric motor quality (EMQ)

Product Highlights

This bearing offers quiet operation and meets high precision standards. The C3 internal clearance allows for optimal performance, even under load.

Product Information

Standard Information

• Brand: Timken
• Manufacturer Catalog No: 00825

Technical Specifications

• Series: 6200
• Weight: 0.234 lbs
• Row Type: Single
• Bore Type: Straight
• Cage Material: Steel
• Closure Type: Single Shielded
• Overall Width: 14 mm
• Bore Diameter: 20 mm
• Outside Diameter: 47 mm
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Ball
• Internal Clearance: C3
• Snap Ring Included: Without Snap Ring
• Max Operating Temperature: 120° C
