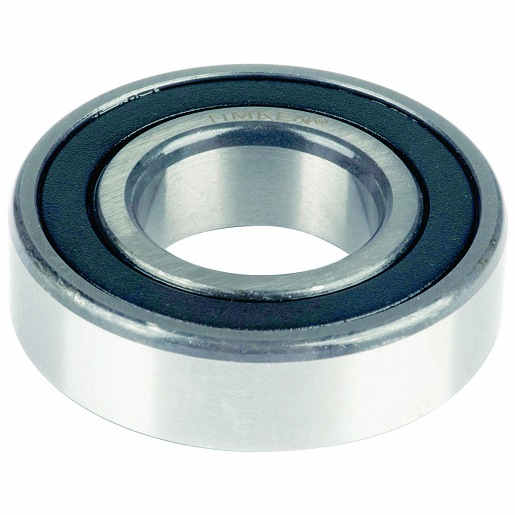

Timken 6203-RS Radial/Deep Groove Ball Bearing - Straight Bore, 17 mm ID, 40 mm OD, 12 mm Width, Without Snap Ring

Product Description

Timken 6203-RS is a radial and deep groove ball bearing designed for various applications. This bearing features a straight bore with an inner diameter of seventeen millimeters, an outer diameter of forty millimeters, and a width of twelve millimeters. It is single-sealed, providing effective lubricant retention and protection against contaminants.

• Super finished raceways for enhanced performance
• ISO standard interchangeable dimensions
• Electric Motor Quality (EMQ) for reliable operation

Product Highlights

This ball bearing is suitable for high-speed applications and effective in reducing friction, contributing to a longer service life.

Product Information

Standard Information

• Brand: Timken
• Manufacturer Catalog No: 00825

Technical Specifications

• MPN: 6203-RS
• Weight: 0.146 lbs
• Row Type: Single
• Bore Type: Straight
• Closure Type: Single Sealed
• Bore Diameter: 17 mm
• Outside Diameter: 40 mm
• Overall Width: 12 mm
• Rolling Element: Ball
• Precision Rating: ABEC 1
• Snap Ring Included: Without Snap Ring
• Cage Material: Steel
• Max Operating Temperature: 120° C
