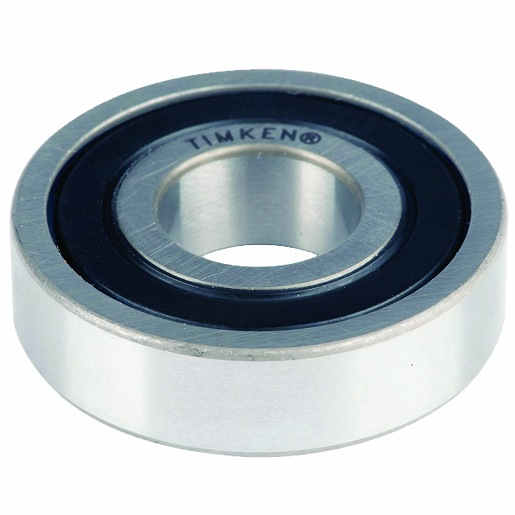

Timken 609-2RS-C3 Radial/Deep Groove Ball Bearing - Straight Bore, 9 mm ID, 24 mm OD, 7 mm Width, C3 Internal Clearance

Product Description

The Timken 609-2RS-C3 is a radial and deep groove ball bearing designed for varied applications. It features a straight bore and has an inside diameter of nine millimeters and an outside diameter of twenty-four millimeters. The bearing has a width of seven millimeters and is double sealed for enhanced protection against contaminants.

• Manufactured with steel for durability
• Meets ISO standard interchangeable dimensions
• Designed for quiet operation

Product Highlights

This product is suitable for electric motors, offering a minimal size to performance ratio ideal for ultra-compact applications.

Product Information

Standard Information

• Brand: Timken
• MPN: 609-2RS-C3

Technical Specifications

• Series: 6
• Row Type: Single
• Bore Type: Straight
• Closure Type: Double Sealed
• Product Type: Radial & Deep Groove Ball Bearings
• Bore Diameter: 9 mm
• Outside Diameter: 24 mm
• Overall Width: 7 mm
• Inner Ring Width: 0.276 in
• Max Operating Temperature: 120° C
• Precision Rating: ABEC 1
• Internal Clearance: C3
• Snap Ring Included: Without Snap Ring
• Rolling Element: Ball
• Cage Material: Steel
