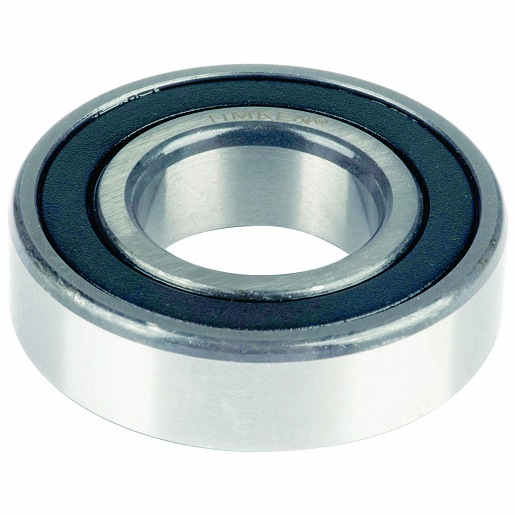

Timken 6002-RS-C3 Radial Deep Groove Ball Bearing 15 mm ID 32 mm OD C3 Internal Clearance

Product Description

The Timken 6002-RS-C3 is a radial deep groove ball bearing. It features a straight bore with an inner diameter of fifteen millimeters, an outer diameter of thirty-two millimeters, and a width of nine millimeters. This single sealed bearing is designed without a snap ring and is built to provide reliable performance in various applications.

• Super finished raceways for enhanced performance
• Quiet operations suitable for electric motors
• Contact seal offers superior lubricant retention

Product Highlights

This bearing meets ISO standards for interchangeability and maintains electric motor quality, ensuring effective performance in different environments.

Product Information

Standard Information

• Brand: Timken
• Part Number: 07409529

Technical Specifications

• Series: 6000
• Weight: 0.066 lbs
• Bore Type: Straight
• Closure Type: Single Sealed
• Bore Diameter: 15 mm
• Outside Diameter: 32 mm
• Overall Width: 9 mm
• Internal Clearance: C3
• Precision Class: ISO Normal/ABEC1
• Max Operating Temperature: 120° C
