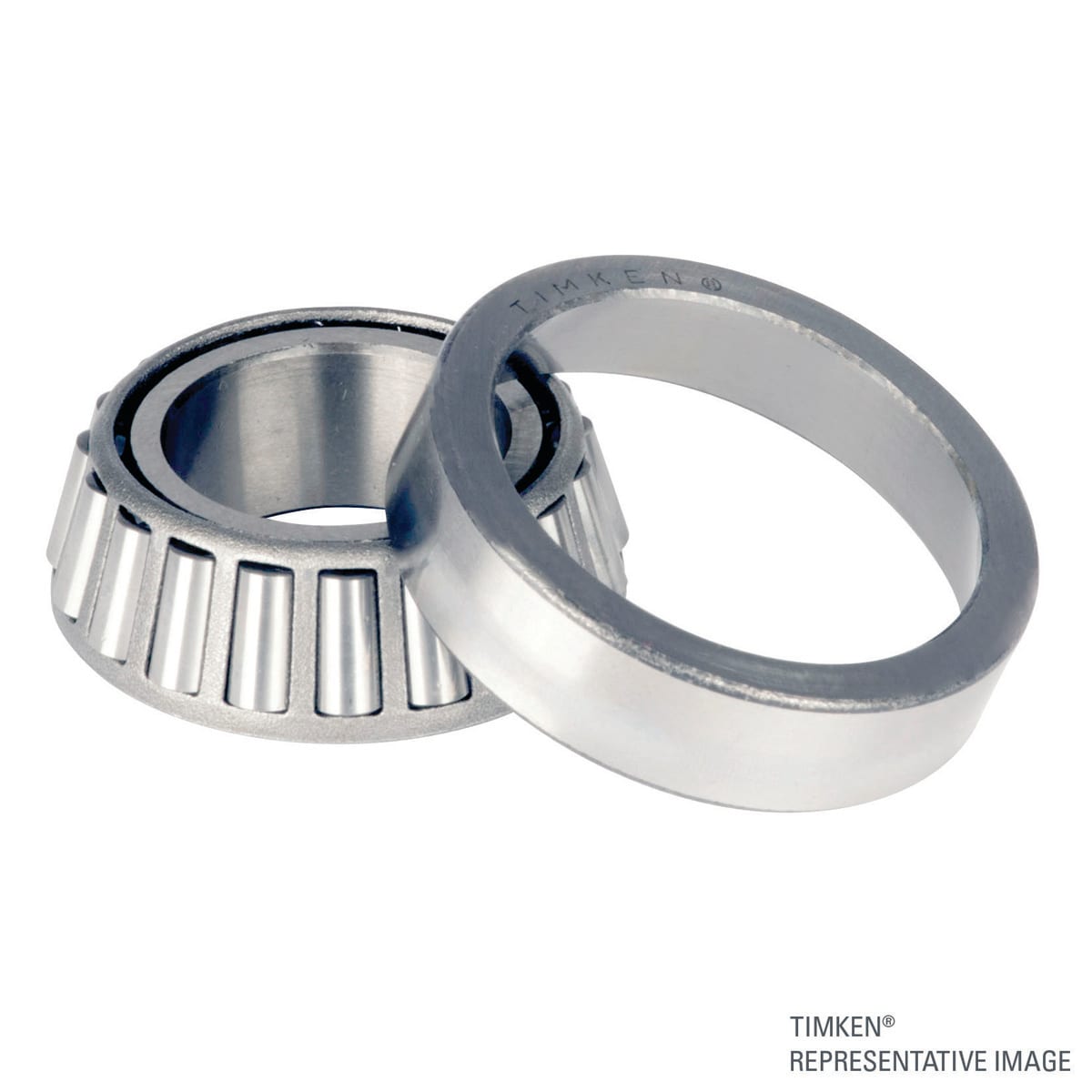

Timken 33109-90KA1T Tapered Roller Bearings | Metric | 45 mm 1.7717 in Bore | 80 mm 3.1496 in OD | 26 mm 1.0236 in Width

Product Description

Timken 33109-90KA1T is a tapered roller bearing made for metric standards. This bearing supports radial and thrust loads in machinery applications. The bore size measures forty-five millimeters, the outer diameter is eighty millimeters, and the width is twenty-six millimeters.

• Designed for radial and thrust load support
• Features a straight bore with a steel cage
• Manufactured according to ISO 355 standards

Product Highlights

This bearing is suitable for various applications in industrial environments. It provides enhanced performance and durability, which is critical for demanding tasks.

Product Information

Standard Information

• Type: Unmounted Tapered Roller Bearing
• Material: Steel
• Row Type: Single
• Bore Type: Straight Bore
• Cage Type: Steel
• Net Weight: 1.162 lb

Technical Specifications

• Shaft Size: 1.7717 Inch | 45 mm
• Overall Width: 1.0236 Inch | 26 mm
• Outside Diameter: 3.1496 Inch | 80 mm
• Dynamic Load Capacity: 25300 lb
• Static Load Capacity: 26800 lb
• Rolling Element: Tapered Roller
• Rolling Element Material: Steel
• Precision Class: Class K (Standard)
