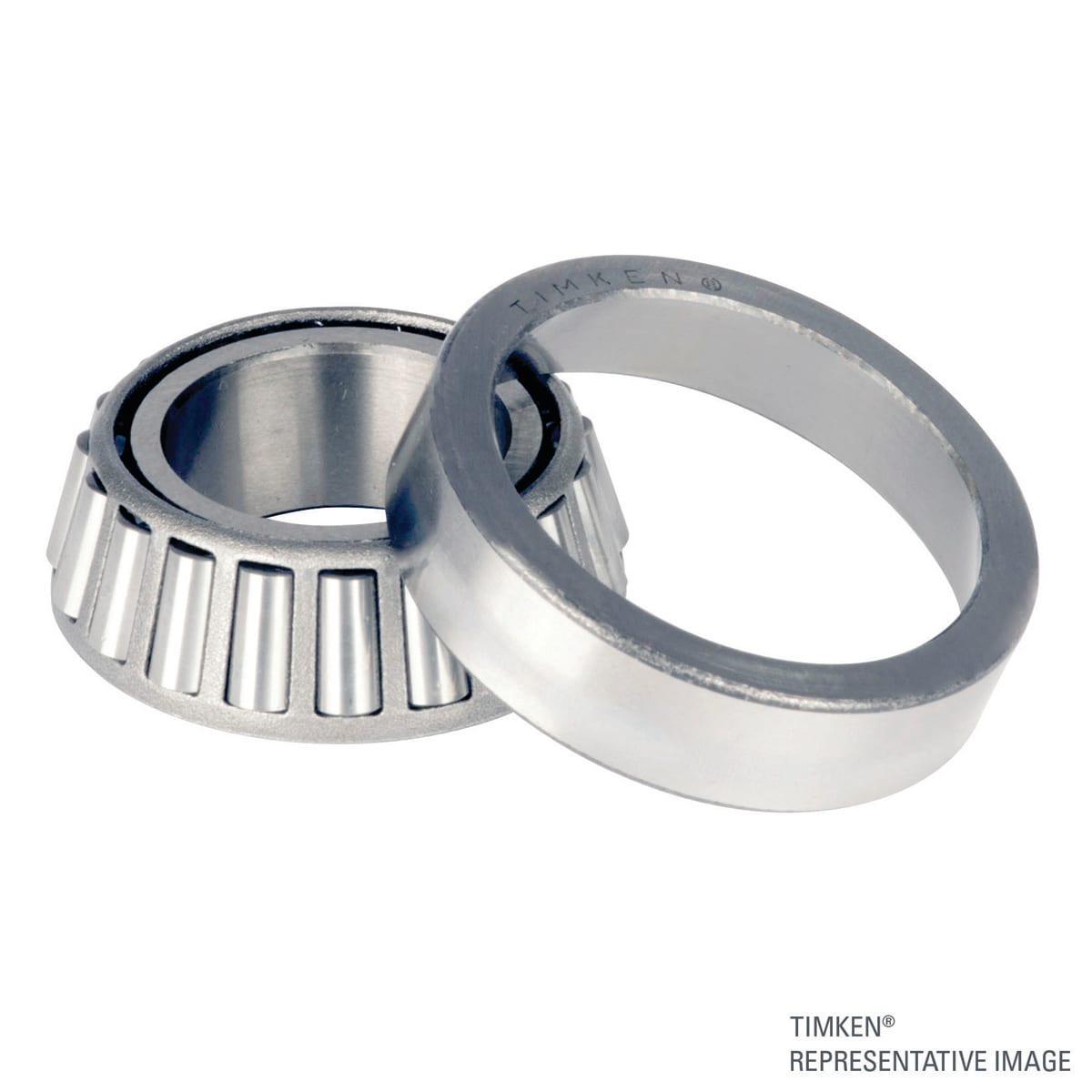

TIMKEN 32020X-9X257 Tapered Roller Bearings | Metric | 100 mm Bore | 150 mm OD | 32 mm Width

Product Description

The TIMKEN 32020X-9X257 is a metric tapered roller bearing designed for high performance in various applications. This part features a bore diameter of one hundred millimeters and an overall diameter of one hundred fifty millimeters. It is built to manage both radial and thrust loads effectively, making it suitable for demanding industrial conditions.

• Reliable in extreme situations.
• Versatile design for managing different load types.
• Longer life span compared to standard bearings.

Product Highlights

This bearing meets ISO 355 standards for single-row metric tapered roller bearings, ensuring high-quality performance.

Product Information

Standard Information

• Brand: TIMKEN
• MPN: 32020X-9X257

Technical Specifications

• Type: Unmounted Tapered Roller Bearing
• Bore Diameter: 3.937 inches | 100 mm
• Outside Diameter: 5.9055 inches | 150 mm
• Width: 1.2598 inches | 32 mm
• Net Weight: 4.181 lb
• Dynamic Load Capacity: 51800 lb
• Static Load Capacity: 66400 lb
• Material: Steel
