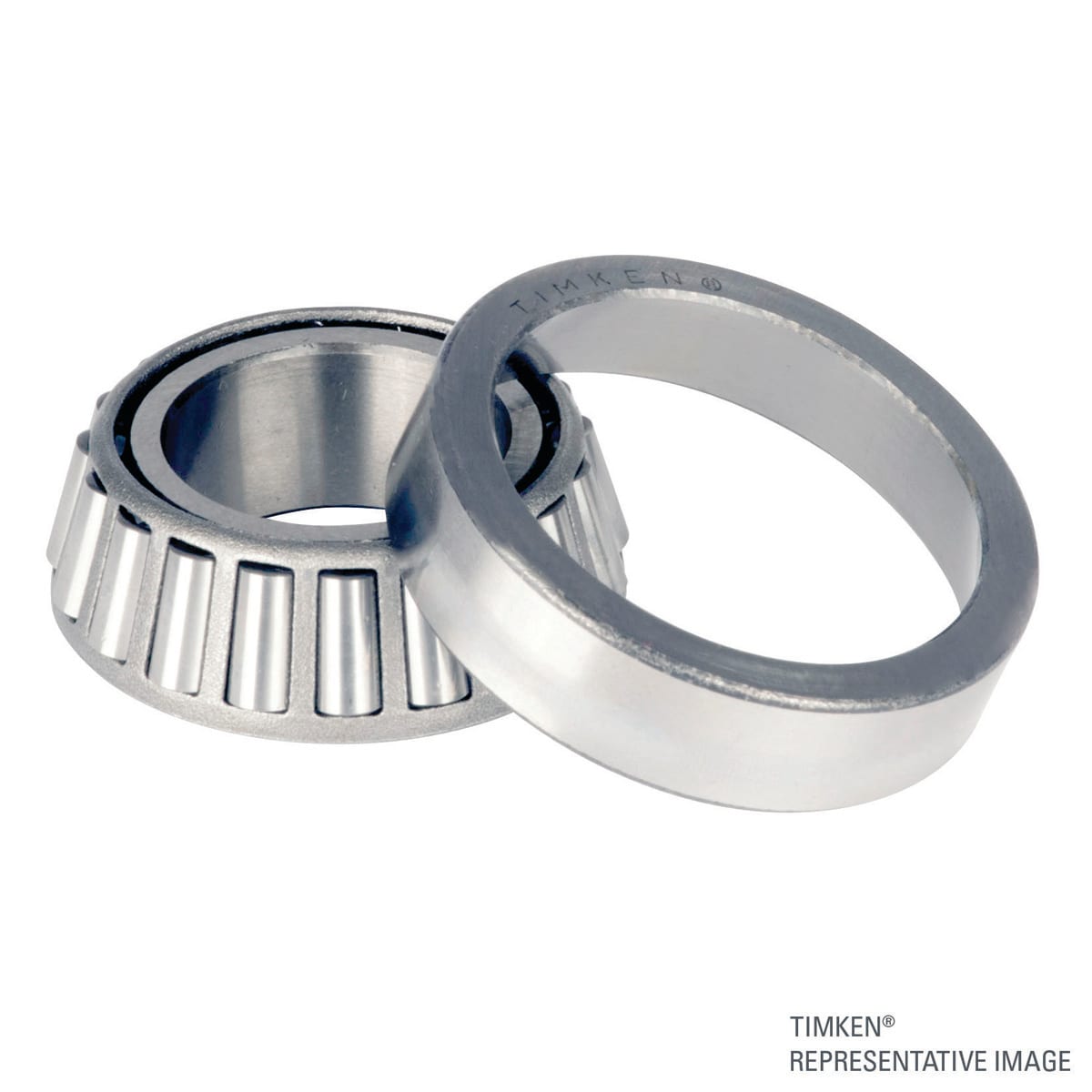

Timken 30309M-90KM1T Tapered Roller Bearings | Metric | 45 mm Bore | 100 mm OD | 27.25 mm Width

Product Description

The Timken 30309M-90KM1T tapered roller bearing is a high-quality component designed for various applications. This metric bearing features a bore of forty-five millimeters and an outside diameter of one hundred millimeters. It meets ISO 355 standards, ensuring compatibility and performance in demanding situations.

• Reliable in extreme situations
• Versatile to manage both radial and thrust loads
• Enhanced performance in demanding applications

Product Highlights

This bearing excels in performance, offering a longer service life and stability under load.

Product Information

Standard Information

• Brand: Timken
• Part Number: 30309M-90KM1T

Technical Specifications

• Type: Unmounted Tapered Roller Bearing
• Material: Steel
• Row Type: Single
• Bore Type: Straight Bore
• Cage Type: Steel
• Net Weight: 2.189 lb
• Shaft Size: 1.7717 Inch | 45 mm
• Overall Width: 1.0728 Inch | 27.25 mm
• Outside Diameter: 3.937 Inch | 100 mm
• Static Load Capacity: 31300 lb
• Dynamic Load Capacity: 29000 lb
• Rolling Element: Tapered Roller
• Precision Class: Class K (Standard)
