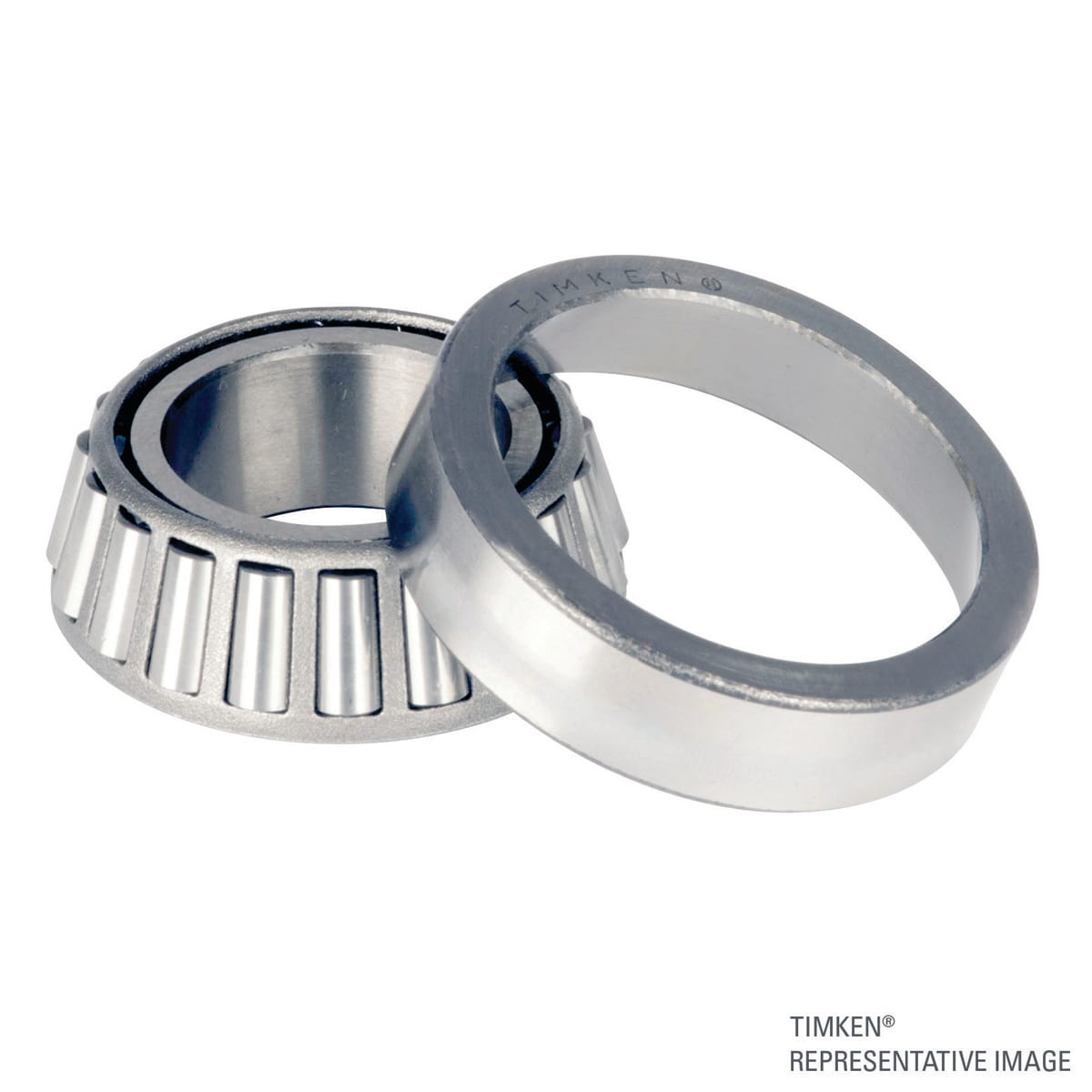

Timken 30308M-90KM1 Tapered Roller Bearings | Metric | 40 mm 1.5748 in Bore | 90 mm 3.5433 in OD | 25.25 mm 0.9941 in Width

Product Description

The Timken 30308M-90KM1 is a metric tapered roller bearing designed for various high-performance applications. It features a bore diameter of 40 millimeters, an outside diameter of 90 millimeters, and a width of 25.25 millimeters. This product is engineered to ensure efficiency in handling radial and axial loads, making it suitable for numerous industrial uses.

• Reliable in extreme situations
• Versatile to handle both radial and thrust loads
• Enhanced performance in demanding applications

Product Highlights

This bearing is built to meet ISO 355 standards, ensuring its reliability for challenging applications. It is designed for single-row configurations, providing a robust solution for various machinery.

Product Information

Standard Information

• Brand: Timken
• Part Number: 30308M-90KM1T

Technical Specifications

• Type: Unmounted Tapered Roller Bearing
• Material: Steel
• Row Type: Single
• Bore Type: Straight Bore
• Cage Type: Steel
• Net Weight: 1.611 lb
• Shaft Size: 1.5748 Inch | 40 mm
• Overall Width: 0.9941 Inch | 25.25 mm
• Outside Diameter: 3.5433 Inch | 90 mm
• Static Load Capacity: 24600 lb
• Dynamic Load Capacity: 23200 lb
• Precision Class: Class K (Standard)
