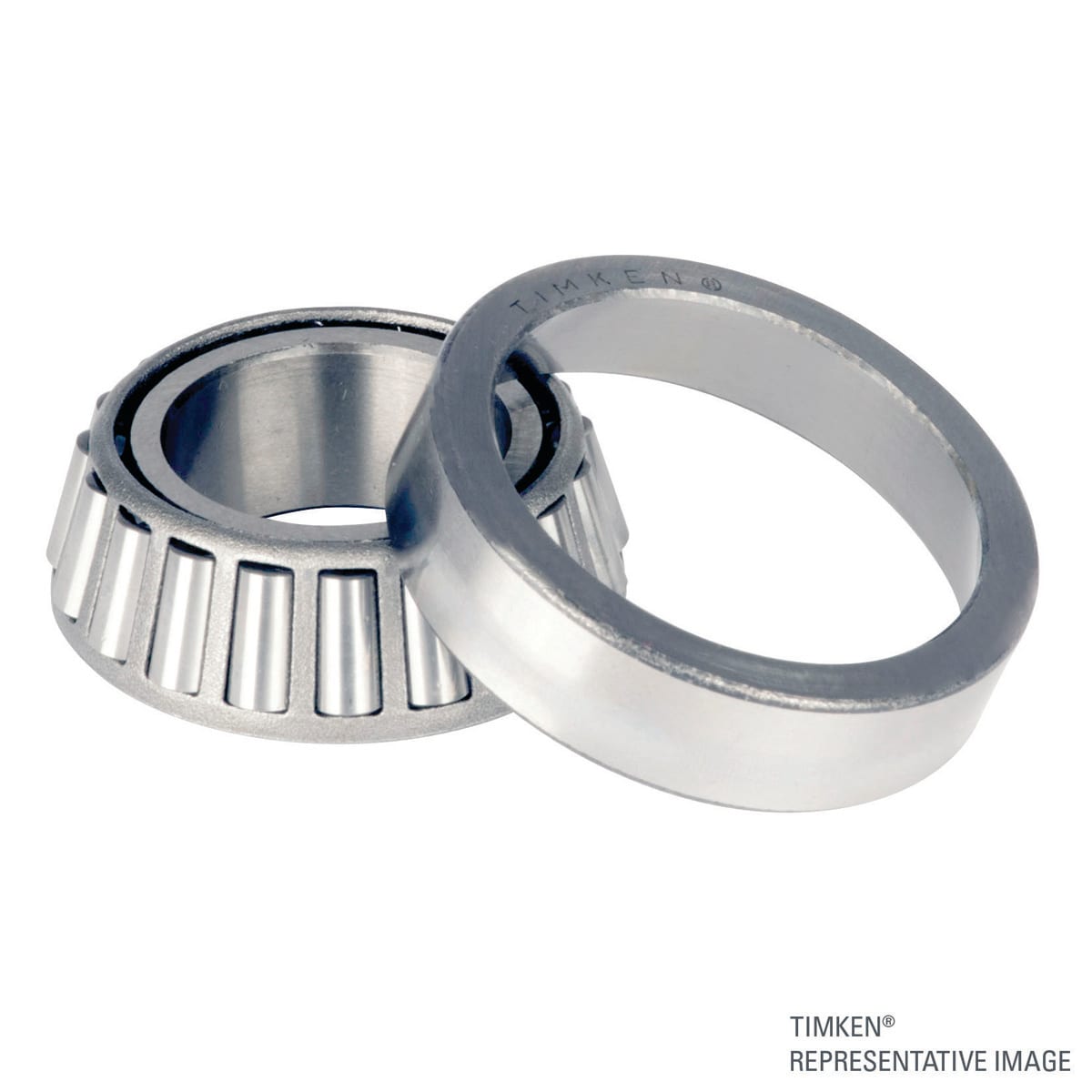

Timken 30307M-90KM1 Tapered Roller Bearings | Metric | 35 mm 1.378 in Bore | 80 mm 3.1496 in OD | 22.75 mm 0.8957 in Width

Product Description

The Timken 30307M-90KM1 tapered roller bearing is a metric component designed for reliable performance in demanding applications. This bearing features a bore of thirty-five millimeters and an outside diameter of eighty millimeters, with a width of twenty-two point seven five millimeters. It is engineered to handle both radial and thrust loads effectively.

• Reliable in extreme situations
• Versatile to manage both radial and thrust loads
• Enhanced performance in demanding applications

Product Highlights

This product line meets the ISO 355 standard, ensuring high-quality performance and extended service life under challenging conditions.

Product Information

Standard Information

• Brand: Timken
• Part Number: 30307M-90KM1T

Technical Specifications

• Type: Unmounted Tapered Roller Bearing
• Material: Steel
• Row Type: Single
• Bore Type: Straight Bore
• Cage Type: Steel
• Weight: 1.15 lb
• Shaft Size: 1.378 Inch | 35 mm
• Overall Width: 0.8957 Inch | 22.75 mm
• Outside Diameter: 3.1496 Inch | 80 mm
• Static Load Capacity: 19300 lb
• Dynamic Load Capacity: 19600 lb
• Precision Class: Class K (Standard)
• Rolling Element: Tapered Roller
• Rolling Element Material: Steel
