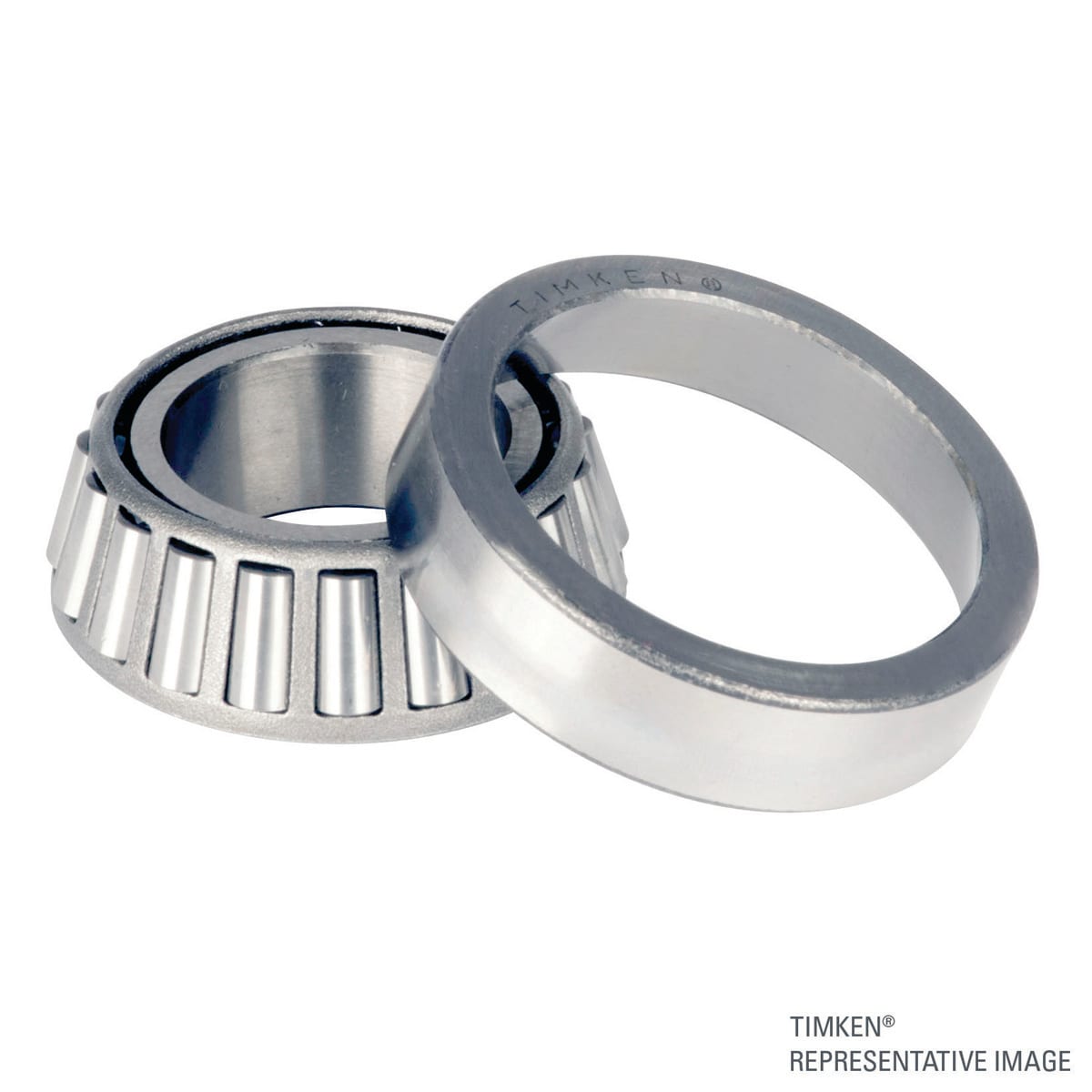

Timken 30304-90KA1 Tapered Roller Bearings | Metric | 20 mm Bore | 52 mm OD | 16.25 mm Width

Product Description

Timken 30304-90KA1 is a metric tapered roller bearing designed for various applications. These bearings are built to meet industry requirements and ensure reliable performance in demanding environments. The part features a straight bore with a shaft size of twenty millimeters, an outer diameter of fifty-two millimeters, and a width of sixteen point twenty-five millimeters.

• Reliable in extreme situations
• Versatile for radial and thrust load management
• Enhanced performance in demanding applications

Product Highlights

Timken bearings are engineered for higher performance and longevity. They are suitable for various applications due to their robust design.

Product Information

Standard Information

• Brand: Timken
• MPN: 30304-90KA1

Technical Specifications

• Type: Unmounted Tapered Roller Bearing
• Material: Steel
• Net Weight: 0.366 lb
• Bore Type: Straight Bore
• Cage Type: Steel
• Overall Width: 0.6398 Inch | 16.25 mm
• Outside Diameter: 2.0472 Inch | 52 mm
• Shaft Size: 0.7874 Inch | 20 mm
• Dynamic Load Capacity: 8660 lb
• Static Load Capacity: 7760 lb
