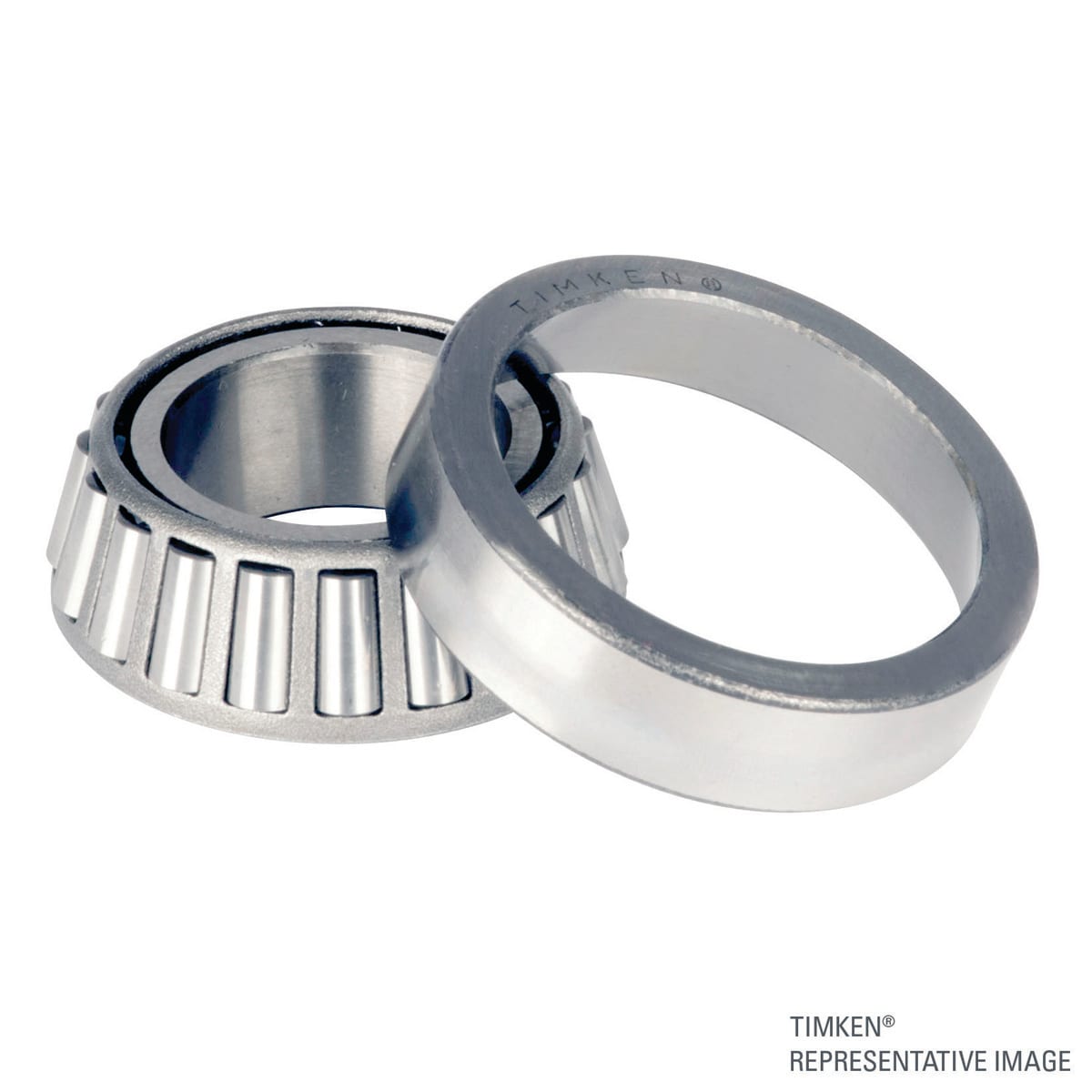

Timken 30209M-90KM1 Tapered Roller Bearings | Metric | 45 mm 1.7717 in Bore | 85 mm 3.3465 in OD | 20.75 mm 0.8169 in Width

Product Description

Timken 30209M-90KM1T is a metric tapered roller bearing designed for various applications. This bearing is engineered to meet specific customer needs and adheres to ISO 355 standards. It is suitable for handling both radial and thrust loads effectively.

• Reliable in extreme situations
• Versatile to manage both radial and thrust loads
• Enhanced performance in demanding applications

Product Highlights

Timken tapered roller bearings are engineered for higher performance and longer life. They are suitable for high-demand environments.

Product Information

Standard Information

• Brand: Timken
• Part Number: 30209M-90KM1T

Technical Specifications

• Type: Unmounted Tapered Roller Bearing
• Material: Steel
• Row Type: Single
• Bore Type: Straight Bore
• Cage Type: Steel
• Net Weight: 1.054 lb
• Shaft Size: 1.7717 Inch | 45 mm
• Overall Width: 0.8169 Inch | 20.75 mm
• Outside Diameter: 3.3465 Inch | 85 mm
• Static Load Capacity: 20900 lb
• Dynamic Load Capacity: 18500 lb
• Rolling Element: Tapered Roller
• Precision Class: Class K (Standard)
• Cage Material: Steel
