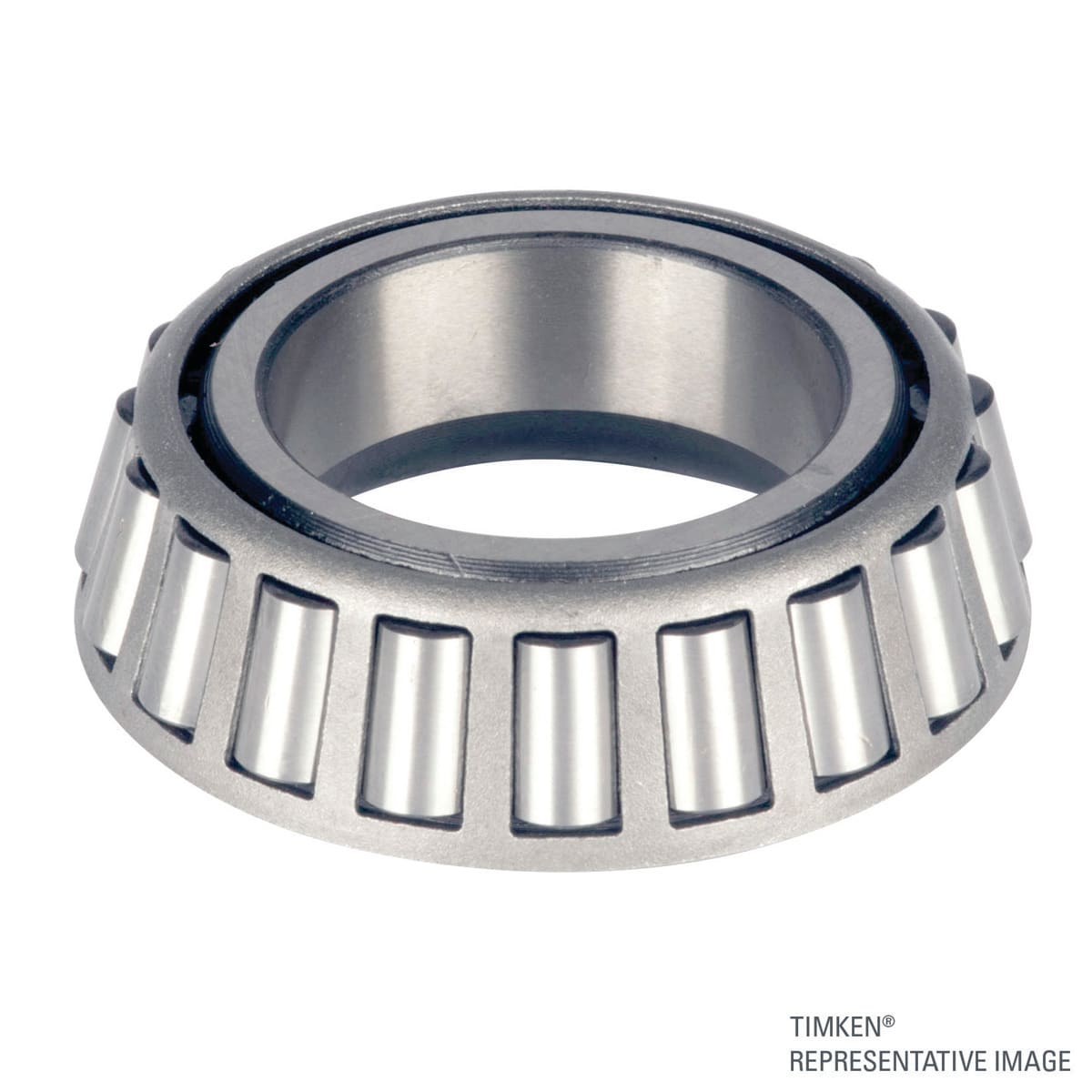

Timken 29586-2 Tapered Roller Bearing Cone, 2-1/2 In Bore, 1 In Width

Product Description

The Timken 29586-2 is a tapered roller bearing cone designed for high performance in demanding applications. This bearing features a bore diameter of two and a half inches and a cone width of one inch. Its robust design allows it to handle both radial and axial loads effectively.

• Capacity to manage 29,400 lb dynamic and 36,300 lb static loads
• Operating temperature range from -65 to 250 degrees Fahrenheit
• Single cone with a one-piece pressed steel cage

Product Highlights

The Timken tapered roller bearing is crucial for applications such as vehicle front wheels, differential configurations, and machine tool spindles.

Product Information

Standard Information

• Brand: Timken
• Type: Tapered Roller Bearing

Technical Specifications

• MPN: 29586-2
• Bore Diameter: 2-1/2 in
• Cone Width: 1 in
• Maximum Shaft Fillet Radius: 0.06 in
• Dynamic Load Capacity: 29,400 lb
• Static Load Capacity: 36,300 lb
• Temperature Rating: -65 to 250 deg F
• Cage Material: Steel
