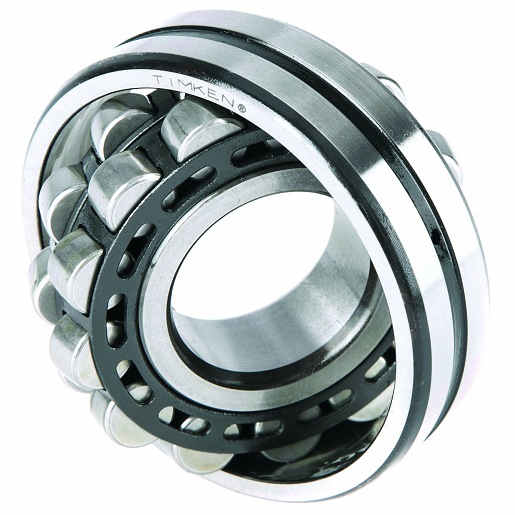

Timken 24032EJW33C3 Spherical Roller Bearing - 160 mm ID, 240 mm OD, 80 mm Width, Replacement MPN 00835

Product Description

The Timken 24032EJW33C3 is a spherical roller bearing with a bore diameter of one hundred sixty millimeters and an outer diameter of two hundred forty millimeters. It features a width of eighty millimeters and is designed for heavy load applications. This bearing model has an open closure type which allows for easy access to lubrication. The C3 internal clearance provides additional space for thermal expansion and allows for smoother operation.

• Standard lubrication holes and groove in outer ring
• Operating temperature range of negative sixty-five to positive three hundred ninety-two degrees Fahrenheit
• Precision rating: Not rated

Product Highlights

This product is ideal for sectors that require reliable performance in challenging conditions. It is suitable for various industrial applications involving rotating shafts.

Product Information

Standard Information

• Brand: Timken
• MPN: 24032EJW33C3

Technical Specifications

• Bore Diameter: 160 mm
• Outside Diameter: 240 mm
• Overall Width: 80 mm
• Maximum RPM: 1800 rpm
• Fillet Radius: 2.00 mm
• Cage Type: Window
• Material: Steel
• Lubrication Hole Type: Lubrication Groove & Hole
