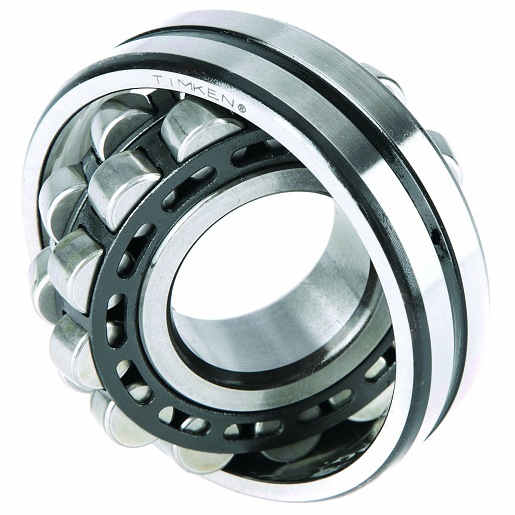

Timken 24030KEJW33C3 Spherical Roller Bearing - 150 mm ID, 225 mm OD, 75 mm Width, Tapered 1:12 Bore, Open, C3

Product Description

The Timken 24030KEJW33C3 is a spherical roller bearing designed for various applications requiring high performance and reliability. This bearing features a bore diameter of one hundred fifty millimeters and an outside diameter of two hundred twenty-five millimeters. It is constructed with a tapered bore type of one to twelve, which enhances its mounting capability on shafts. Its open design enables easy access for lubrication.

• Standard lubrication holes and groove in the outer ring
• C3 internal clearance for improved performance
• Maximum operational speed of two thousand RPM

Product Highlights

This spherical roller bearing offers reliable performance for heavy loads and is well-suited for various industrial applications.

Product Information

Standard Information

• Brand: Timken
• Type of Bearing: Spherical Roller Bearings

Technical Specifications

• Weight: 21.93 lbs
• Bore Diameter: 150 mm
• Outside Diameter: 225 mm
• Overall Width: 75 mm
• Rolling Element: Spherical
• Closure Type: Open
• Lubrication Hole Type: Lubrication Groove & Hole
• Operating Temperature Range: -65 to +392 °F
• Cage Type: Window
• Cage Material: Steel Cage
• Relubricatable: Yes
• Maximum RPM: 2000 rpm
• Fillet Radius: 2.00 mm
• Finish/Coating: Uncoated
• Manufacturer UPC Number: 087796204829
