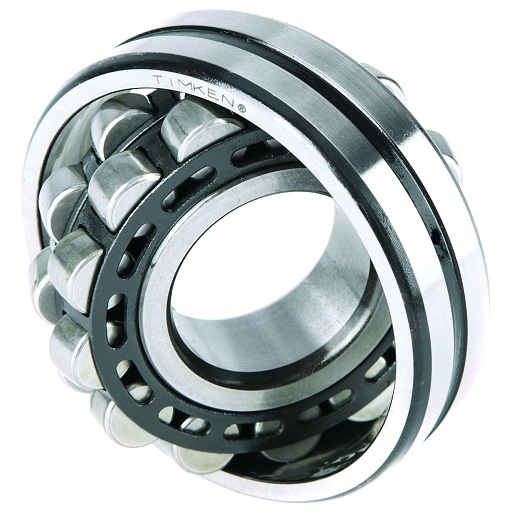

Timken 24030EJW33C3 Spherical Roller Bearing - 150 mm ID, 225 mm OD, 75 mm Width, Open, C3

Product Description

The Timken 24030EJW33C3 is a spherical roller bearing designed for robust applications. With an inner diameter of one hundred fifty millimeters and an outer diameter of two hundred twenty-five millimeters, this bearing accommodates significant loads. Its open design allows for standard lubrication, while the C3 internal clearance ensures performance in diverse operating conditions.

• Standard lubrication holes and grooves in the outer ring
• Features a steel cage for support
• Operating temperature range from minus sixty-five to plus three hundred ninety-two degrees Fahrenheit

Product Highlights

This spherical roller bearing is suitable for heavy-duty applications, providing reliable operation and durability.

Product Information

Standard Information

• Brand: Timken
• MPN: 24030EJW33C3

Technical Specifications

• Series: 240
• Bore Diameter: 150 mm
• Outside Diameter: 225 mm
• Overall Width: 75 mm
• Bore Type: Straight
• Cage Type: Window
• Closure Type: Open
• Weight: 22.31 lbs
• Maximum RPM: 2000 rpm
• Precision Rating: Not Rated
• Internal Clearance: C3
• Lubrication Hole Type: Lubrication Groove & Hole
• Operating Temperature Range: -65 to +392 °F
