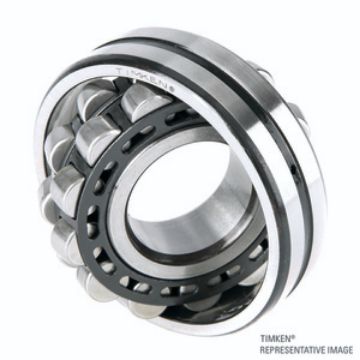

Timken 23122EJW33C3 Spherical Roller Bearing Cylindrical Bore Type EJ 110 mm ID 180 mm OD

Product Description

The Timken 23122EJW33C3 is a spherical roller bearing designed for high radial loads. It features a cylindrical bore type EJ configuration, suitable for demanding environments. This particular bearing has a bore diameter of one hundred ten millimeters and an outside diameter of one hundred eighty millimeters. With a width of fifty-six millimeters, this product can handle significant dynamic loads of one hundred sixteen thousand pounds and static loads of one hundred fifty-four thousand pounds.

• Capable of operating at a maximum speed of two thousand five hundred RPM when greased, and up to two thousand nine hundred RPM with oil.
• Utilizes steel material for enhanced durability and performance.
• Temperature tolerance ranging from negative sixty-five to three hundred ninety-two degrees Fahrenheit.

Product Highlights

This spherical roller bearing is designed to manage high radial loads and withstand demanding conditions.

Product Information

Standard Information

• Brand: Timken
• MPN: 23122EJW33C3

Technical Specifications

• Bore Diameter: 110 mm
• Outside Diameter: 180 mm
• Width: 56 mm
• Load Capacity: 116000 lb Dynamic / 154000 lb Static
• Cage Material: Steel
• Maximum Speed: 2500 rpm Grease / 2900 rpm Oil
• Temperature Rating: -65 to 392 deg F
• Closure Type: Open
