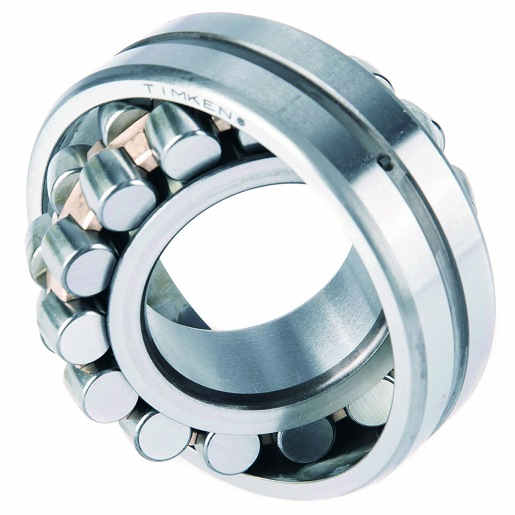

Timken 22320EMW33W800C4 Spherical Roller Bearing - 100 mm ID, 215 mm OD, 73 mm Width, C4

Product Description

The Timken 22320EMW33W800C4 is a spherical roller bearing designed for vibratory applications. With a bore diameter of one hundred millimeters and an outer diameter of two hundred fifteen millimeters, this bearing supports significant radial loads. It features a straight bore and an open closure type, making it suitable for various heavy-duty machinery.

• Designed for vibratory applications
• High precision with a C4 internal clearance rating
• Brass cage and lubrication grooves for effective lubrication

Product Highlights

This product is ideal for machinery that requires reliable performance in demanding conditions. Its robust construction ensures longevity and reduces maintenance needs.

Product Information

Standard Information

• Product Type: Spherical Roller Bearings
• Brand: Timken

Technical Specifications

• Bore Diameter: 100 mm
• Outside Diameter: 215 mm
• Overall Width: 73 mm
• Weight: 28.31 lbs
• Max RPM: 2900 rpm
• Cage Material: Brass Cage
• Operating Temperature Range: -65 to +392 °F
• Rolling Element: Spherical
