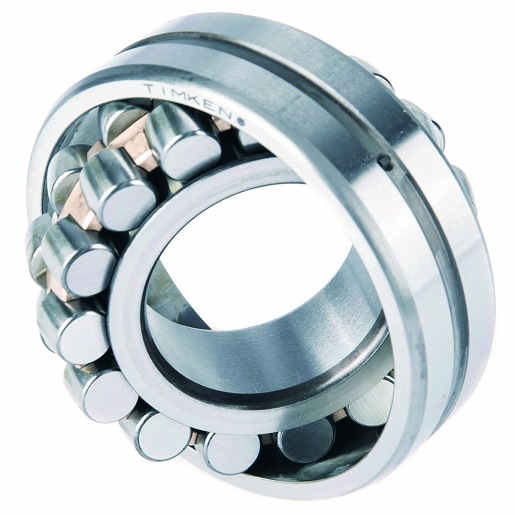

Timken 22318EMW33W800C4 Spherical Roller Bearing - 90 mm ID, 190 mm OD, 64 mm Width, Straight Bore, Open, C4

Product Description

The Timken 22318EMW33W800C4 is a high-performance spherical roller bearing designed for robust applications. It features a bore diameter of ninety millimeters and an outside diameter of one hundred ninety millimeters, with an overall width of sixty-four millimeters. This bearing accommodates high radial and axial loads in both directions and can tolerate up to two point five degrees of shaft misalignment.

• Timken's top load ratings and thermal speeds
• Machined brass cage that offers durability
• Standard lubrication holes for efficient maintenance

Product Highlights

Ideal for vibratory applications, the Timken spherical roller bearing ensures reliability and performance in demanding environments.

Product Information

Standard Information

• Brand: Timken
• MPN: 22318EMW33W800C4

Technical Specifications

• Series: 223
• Weight: 19.30 lbs
• Bore Diameter: 90 mm
• Outside Diameter: 190 mm
• Overall Width: 64 mm
• Cage Material: Brass
• Maximum RPM: 3300 rpm
• Operating Temperature Range: -65 to +392 °F
• Internal Clearance: C4
• Closure Type: Open
• Lubrication Hole Type: Lubrication Groove & Hole
