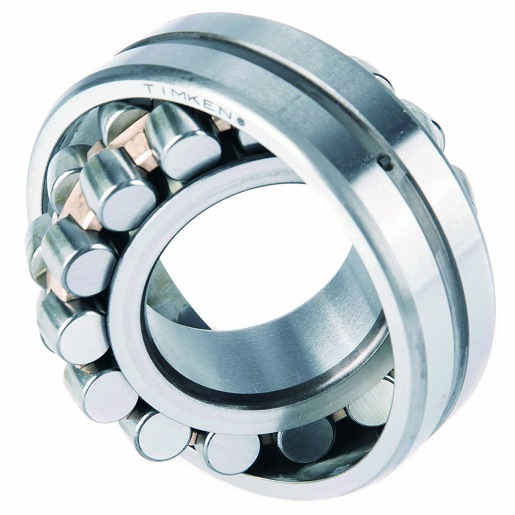

Timken 22316EMW33W800C4 Spherical Roller Bearing - 80 mm ID, 170 mm OD, 58 mm Width, Straight Bore, Open, C4

Product Description

Timken 22316EMW33W800C4 is a spherical roller bearing designed for various applications. This bearing has an inner diameter of eighty millimeters and an outer diameter of one hundred seventy millimeters. It has a width of fifty-eight millimeters and features a straight bore and open design. This bearing is suitable for use in vibratory applications.

• Standard lubrication holes and groove in outer ring
• Includes shaker screen modifications for improved performance
• Capable of operating at speeds up to three thousand eight hundred RPM

Product Highlights

Timken spherical roller bearings are ideal for applications requiring durability and strength, with a brass cage that supports the rolling elements.

Product Information

Standard Information

• Brand: Timken
• MPN: 22316EMW33W800C4

Technical Specifications

• Bore Diameter: 80 mm
• Outside Diameter: 170 mm
• Overall Width: 58 mm
• Weight: 0.25, 13.89 lbs
• Max RPM: 3800 rpm
• Internal Clearance: C4
• Lubrication Hole Type: Lubrication Groove & Hole
• Cage Material: Brass Cage
