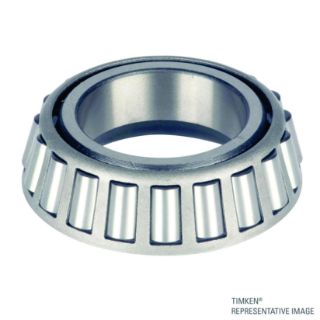

Timken 1986-2 Tapered Roller Bearing Cone Type TS 1 in Bore 1986-2

Product Description

The Timken 1986-2 is a tapered roller bearing cone designed for heavy-duty applications. It features a one-inch bore and a cone width of zero point seven six two inches, optimized for high performance. This bearing is suitable for various applications such as vehicle front wheels and machine tool spindles.

• Dynamic load capacity of ten thousand nine hundred pounds.
• Static load capacity of eleven thousand three hundred pounds.
• Temperature rating between one hundred seventy-six to two hundred three degrees Fahrenheit.

Product Highlights

The Timken 1986-2 tapered roller bearing cone offers durability and efficiency to meet the demands of challenging applications.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• Type: Type TS
• Bore Diameter: 1 inch
• Cone Width: 0.762 inches
• Maximum Shaft Fillet Radius: 0.05 inches
• Dynamic Load Capacity: 10900 lb
• Static Load Capacity: 11300 lb
• Temperature Rating: 176 to 203 degrees Fahrenheit
• Cage Material: Steel
