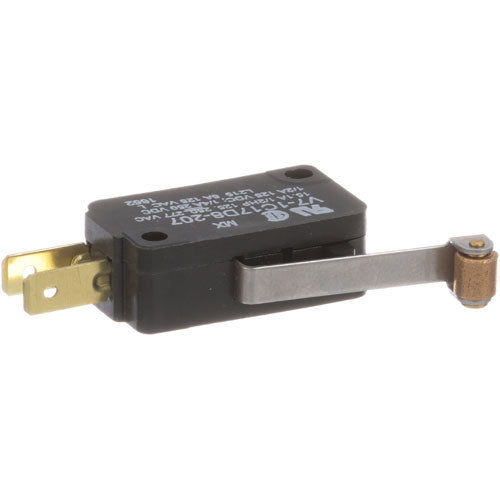

TIMER SWITCH 2 HOLE 1 OC NO NC 0512916 for Champion CHA0512916

Product Description

This item for Champion MPN 0512916 is a timer switch designed for reliable operation in various applications. This switch includes a micro-switch, miniature series V7, with SPDT configuration. It accommodates up to 15 amps at 277VAC and features a roller lever actuator measuring one point three four inches. The device ensures easy installation with two mounting holes spaced point eight eight inches apart.

• Reliable timer switch with micro-switch technology
• Supports 15A at 277VAC
• Includes two mounting holes for easy installation

Product Highlights

This switch is ideal for controlling appliances and machinery where time-based operations are crucial.

Product Information

Standard Information

• Weight: 0.02 pounds
• Length: 2 inches
• Width: 1.125 inches
• Height: 0.375 inches

Technical Specifications

• Model: Miniature Series V7
• Configuration: SPDT
• Current Rating: 15A
• Voltage Rating: 277VAC
• Actuator Length: 1.34 inches
• Mounting Holes: 2
• Mounting Centers: 0.88 inches
