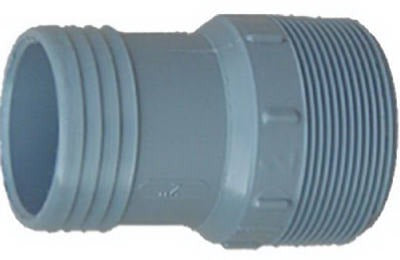

Tigre Usa Inc 1436-251 Reducing Male Adapter Insert X Mip

Product Description

The TIGRE USA INC 1436-251 is a reducing male adapter designed for poly insert fitting applications in cold water distribution systems. It connects 1-1/2 inch insert to a 2 inch male iron pipe (MIP) thread, allowing a transition between polyethylene pipe and threaded pipe connections. The fitting is manufactured from poly insert material and is secured to PE polyethylene pipe using stainless steel clamps. Licensed plumbers and irrigation contractors install this adapter in cold water service lines. It carries ASTM D-2609 listing and NSF 14 and 16 certification for potable water service.

This adapter is suited for cold water supply and distribution applications where polyethylene pipe connects to a threaded iron pipe fitting. It is intended for outdoor, agricultural, or utility installations and is not approved for use inside a dwelling. It must not be used with compressed air or gases. The reducing configuration accommodates a size step-up from 1-1/2 inch insert pipe to a 2 inch male iron pipe thread, making it useful in irrigation manifolds, rural water service, and similar utility piping layouts.

Key Features

• 1-1/2 inch insert inlet to 2 inch MIP outlet reducing configuration
• Poly insert construction compatible with PE polyethylene pipe
• Secured with stainless steel clamps for a reliable mechanical connection
• ASTM D-2609 listed fitting standard
• NSF 14 and NSF 16 certified for potable cold water service
• Sold in packages of 10 units per package

Compatibility

Designed for use with PE polyethylene pipe in cold water service applications. Not approved for use inside dwellings or with compressed air or gases. Fitting modifications void the manufacturer warranty.

Installation Notes

This fitting is installed by licensed plumbers or irrigation contractors working on cold water polyethylene pipe systems. Shut off the water supply and depressurize the line before making any connections. Secure the insert end to PE pipe using appropriately sized stainless steel clamps torqued per the clamp manufacturer instructions. Do not use this fitting on pressurized gas lines or in any application requiring compressed air service.

Technical Specifications

• Inlet Size: 1-1/2 inches Insert
• Outlet Size: 2 inches Male Iron Pipe (MIP)
• Connection Type: Insert x MIP
• Material: Poly Insert
• Pipe Compatibility: PE Polyethylene
• Clamp Material: Stainless Steel
• Service: Cold Water Only
• Certifications: ASTM D-2609, NSF 14, NSF 16
• Package Quantity: 10 per package
• Weight: 2 pounds

Standard Information

• Brand: TIGRE USA INC
• Manufacturer Part Number: 1436-251
