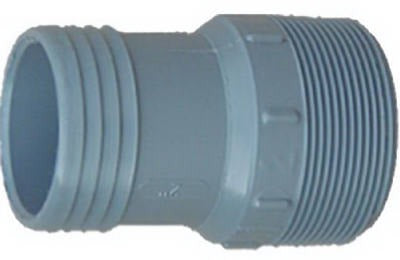

Tigre Usa Inc 1436-020 Poly Mip Adapter 2 Inches

Product Description

The TIGRE USA INC 1436-020 is a 2-inch polyethylene male iron pipe (MIP) thread insert adapter configured as male thread by barbed insert. It connects PE polyethylene pipe to threaded fittings using stainless steel clamps over the barbed insert end. This fitting is rated for cold water service only and is not approved for compressed air, gas, or residential dwelling installations. The 1436-020 meets ASTM D-2609 standards and carries NSF 14 and NSF 16 listings for potable water service. Plumbers and irrigation technicians handling PE pipe systems are the primary installers of this adapter.

This adapter is used in cold water distribution systems that incorporate PE polyethylene pipe, including agricultural irrigation lines, rural water supply runs, and light commercial water service applications outside of dwellings. The male NPT thread end connects to standard threaded pipe, valves, or fittings, while the insert end slides into PE pipe and is secured with stainless steel clamps. It is not suitable for any application involving compressed air, gases, or hot water service.

Key Features

• 2-inch male NPT thread by barbed insert configuration for PE polyethylene pipe
• Stainless steel clamp installation method on the insert end
• ASTM D-2609 listed construction
• NSF 14 and NSF 16 listed for potable cold water service
• Not approved for compressed air, gas service, or dwelling installation
• Sold in a package of 5 units (unit of measure: EA)

Compatibility

Designed for use with PE polyethylene pipe in cold water service applications. Compatible with standard 2-inch NPT threaded connections on the male thread end. Not for use in dwellings or with compressed air or gases.

Installation Notes

Installation is performed by licensed plumbers or qualified irrigation technicians following applicable IPC and local plumbing code requirements. Before installing or replacing this fitting, shut off and depressurize the water supply line completely. Secure the insert end with correctly sized stainless steel crimp or band clamps; do not overtighten to the point of distorting the fitting. Modifying this fitting in any way voids the manufacturer warranty and may compromise the integrity of the connection.

Technical Specifications

• Size: 2 inches
• Configuration: Male NPT x Insert
• Material: Polyethylene (Poly)
• Pipe Compatibility: PE Polyethylene pipe
• Clamp Type: Stainless steel
• Service: Cold water only
• Standards: ASTM D-2609; NSF 14; NSF 16
• Package Quantity: 5 EA
• Weight: 1.3 pounds

Standard Information

• Brand: TIGRE USA INC
• Manufacturer Part Number: 1436-020
