Tigre Usa Inc 1436-015 Poly Mip Insert Adapter 1-1/2 in

Product Description

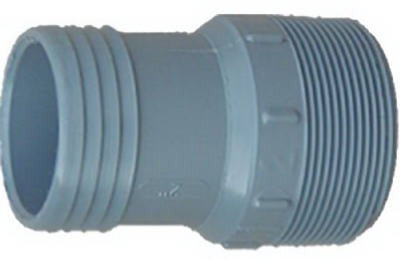

The TIGRE USA INC 1436-015 is a 1-1/2 inch polyethylene male iron pipe (MIP) insert adapter designed for connecting PE polyethylene pipe in cold water distribution systems. The fitting transitions from a male iron pipe thread on one end to an insert barb on the other, allowing it to seat inside PE pipe and secure with stainless steel clamps. This adapter is rated for potable water service and carries ASTM D-2609, NSF 14, and NSF 16 listings. It is installed by licensed plumbers in residential service laterals, irrigation systems, and rural water supply lines where polyethylene pipe is the distribution material.

This adapter is intended for cold water applications only. It is not approved for use with compressed air or gases, and it is not listed for installation inside a dwelling. Typical applications include outdoor water service lines, agricultural water distribution, and irrigation mainline connections where PE pipe terminates at a threaded fitting or valve. Stainless steel clamps are required for a secure, leak-free connection to the PE pipe insert end.

Key Features

• Male iron pipe thread x insert configuration for transitioning threaded fittings to PE polyethylene pipe
• ASTM D-2609 listed for polyethylene plastic insert fittings
• NSF 14 and NSF 16 listed for potable water service
• Rated for cold water use only — not approved for compressed air, gases, or in-dwelling installation
• Connects to PE pipe using stainless steel clamps
• Fitting modifications void the manufacturer warranty

Compatibility

Designed for use with PE polyethylene pipe in cold water service applications. Requires stainless steel clamps on the insert end. Not suitable for hot water, compressed air, gas lines, or interior dwelling plumbing installations.

Installation Notes

This fitting is typically installed by licensed plumbers working on exterior or underground cold water service lines. Shut off the water supply and depressurize the line before making any connections. Secure the insert end with appropriately sized stainless steel clamps and verify clamp torque according to clamp manufacturer specifications. Do not modify the fitting, as modifications void the warranty and may compromise the pressure integrity of the joint.

Technical Specifications

• Size: 1-1/2 inches
• Connection Type: Male Iron Pipe x Insert
• Material: Polyethylene (Poly)
• Weight: 2.3 pounds
• Package Quantity: 15 per unit of measure
• Certifications: ASTM D-2609, NSF 14, NSF 16
• Application: Cold water only — not for compressed air, gases, or in-dwelling use

Standard Information

• Brand: TIGRE USA INC
• Manufacturer Part Number: 1436-015
