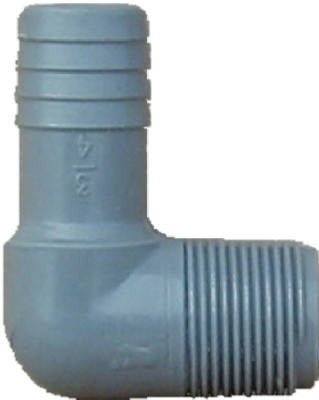

Tigre Usa Inc 1413-005 1/2 Inch Mip Insert Elbow

Product Description

The TIGRE USA INC 1413-005 is a 1/2 inch Male Iron Pipe (MIP) insert elbow fitting designed for use in polyethylene (PE) pipe systems carrying cold water. The fitting connects using an insert-by-male configuration and is secured to PE pipe with stainless steel clamps. It is manufactured for potable water service and carries ASTM D-2609 listing along with NSF 14 and NSF 16 certifications. This fitting is intended for outdoor or non-dwelling cold water distribution applications installed by licensed plumbers or qualified irrigation contractors.

This elbow is suited for agricultural irrigation, rural water supply, and similar cold water PE pipe systems where a directional change and a male pipe thread transition are needed. It is not rated for use inside dwellings, and it must not be used with compressed air or gases. All installation must conform to applicable plumbing codes. This fitting is sold individually as a single unit.

Key Features

• Insert by Male configuration for PE pipe to male pipe thread transitions
• Secured with stainless steel clamps for a reliable, leak-resistant connection
• NSF 14 and NSF 16 Listed for potable cold water service
• ASTM D-2609 Listed
• For cold water use only — not rated for compressed air, gases, or hot water
• Not approved for installation inside a dwelling

Compatibility

Designed as an OEM-style insert fitting for use with 1/2 inch polyethylene (PE) pipe in cold water distribution systems. Fitting modifications void the manufacturer warranty.

Installation Notes

Installation should be performed by a licensed plumber or qualified contractor in accordance with applicable local plumbing codes. Shut off the water supply and relieve system pressure before making any connections. Secure the fitting to PE pipe using appropriately sized stainless steel clamps — do not overtighten clamps as this may damage the pipe or fitting. Do not use this fitting with compressed air, gases, or hot water lines.

Technical Specifications

• Size: 1/2 inch
• Connection Type: Insert x Male Iron Pipe (MIP)
• Pipe Material Compatibility: Polyethylene (PE)
• Clamp Type: Stainless Steel
• Service: Cold Water Only
• Certifications: ASTM D-2609, NSF 14, NSF 16
• Package Quantity: 25 per unit of measure
• Weight: 1.2 pounds

Standard Information

• Brand: TIGRE USA INC
• Manufacturer Part Number: 1413-005
