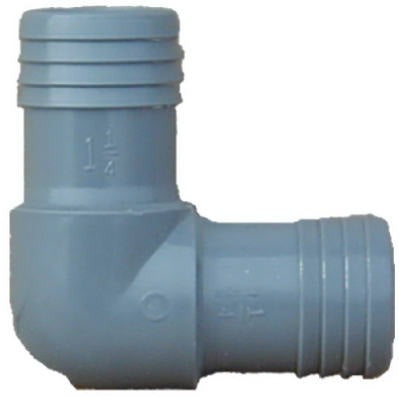

Tigre Usa Inc 1406-012 Poly Insert Elbow 1-1/4 Inch

Product Description

The TIGRE USA INC 1406-012 is a 1-1/4 inch poly insert elbow fitting designed for use with PE polyethylene pipe in cold water service applications. This Poly x Poly configuration changes flow direction in a polyethylene piping run and is secured with stainless steel clamps for a reliable mechanical connection. The fitting meets ASTM D-2609 standards and carries NSF 14 and NSF 16 listings for potable water service, making it appropriate for water distribution lines where drinking water contact is a concern. Plumbers and irrigation contractors typically specify this fitting for underground or above-grade cold water runs.

This fitting is intended for cold water service only. It is not approved for use with compressed air or gases, and it is not listed for installation inside a dwelling. Typical applications include agricultural irrigation lines, rural water supply systems, and outdoor water distribution where polyethylene pipe is the specified pipe material. Each unit ships individually; package quantity is 10 per case.

Key Features

• Poly x Poly insert configuration connects two runs of PE polyethylene pipe at a 90-degree elbow
• Secured with stainless steel clamps for a firm, leak-resistant mechanical joint
• ASTM D-2609 listed construction
• NSF 14 and NSF 16 listed for potable cold water service
• Cold water service only — not rated for compressed air, gas, or interior dwelling use
• Fitting modifications void the manufacturer warranty

Compatibility

Designed for use with PE polyethylene pipe in cold water service applications. Compatible pipe must accept a 1-1/4 inch poly insert fitting secured with stainless steel clamps per ASTM D-2609 requirements.

Installation Notes

Installation is performed by a licensed plumber or qualified irrigation contractor. Shut off the water supply and depressurize the line completely before cutting or fitting the pipe. Secure the fitting using appropriately sized stainless steel clamps torqued per clamp manufacturer guidance. Do not use this fitting with compressed air, gas lines, or inside a dwelling, and do not modify the fitting in any way, as modifications void the warranty.

Technical Specifications

• Size: 1-1/4 inches
• Configuration: Poly x Poly Insert Elbow
• Pipe Material Compatibility: PE Polyethylene
• Connection Method: Stainless Steel Clamp
• Service: Cold Water Only
• Certifications: ASTM D-2609, NSF 14, NSF 16
• Unit of Measure: EA
• Package Quantity: 10
• Weight: 1.7 pounds

Standard Information

• Brand: TIGRE USA INC
• Manufacturer Part Number: 1406-012
