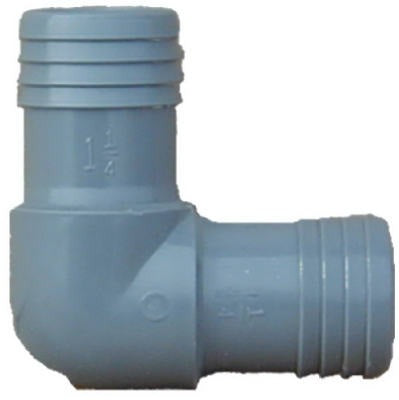

Tigre Usa Inc 1406-010 Poly Insert Elbow 1 Inch

Product Description

The TIGRE USA INC 1406-010 is a 1-inch poly insert elbow fitting designed for use in cold-water polyethylene pipe systems. This Poly x Poly fitting connects PE polyethylene pipe using stainless steel clamps, providing a secure mechanical joint without solvent welding or heat fusion. It is listed under ASTM D-2609 and certified to NSF 14 and NSF 16 for potable water service. Licensed plumbers and irrigation contractors typically install this fitting in low-pressure, buried, or above-ground cold-water distribution lines. It is not rated for compressed air, gas service, or installation inside a dwelling.

This fitting is suited for residential and light commercial cold-water applications including agricultural irrigation, rural water supply lines, and underground PE pipe systems. The poly insert design requires a barbed insert to be pushed into the pipe bore and secured with stainless steel clamps, making it a common choice for field repairs and new installations where polyethylene pipe is the distribution medium. This fitting is for cold water service only and must not be modified.

Key Features

• ASTM D-2609 listed insert fitting construction
• NSF 14 and NSF 16 certified for potable cold-water service
• Poly x Poly configuration connects two runs of PE polyethylene pipe
• Secured with stainless steel clamps for a leak-resistant mechanical joint
• Not rated for compressed air, gas, or in-dwelling installation
• Sold in packages of 25 units

Compatibility

Designed for use with PE polyethylene pipe in cold-water service applications. Fitting must be installed with stainless steel clamps. Not compatible with compressed air, gas lines, or in-dwelling plumbing systems.

Installation Notes

Installation is typically performed by a licensed plumber or irrigation contractor in accordance with applicable plumbing codes. Shut off water supply and depressurize the line before beginning work. Insert the barbed fitting fully into the pipe bore and secure with appropriately sized stainless steel clamps. Do not modify the fitting in any way, as modifications void the manufacturer warranty.

Technical Specifications

• Pipe Size: 1 inch
• Connection Type: Poly Insert x Poly Insert
• Pipe Material Compatibility: PE Polyethylene
• Clamp Type: Stainless Steel (required)
• Service: Cold Water Only
• Certifications: ASTM D-2609, NSF 14, NSF 16
• Package Quantity: 25 EA
• Weight: 2.5 pounds

Standard Information

• Brand: TIGRE USA INC
• Manufacturer Part Number: 1406-010
