Tigre 116-3302 Pvc Dwv Cap Fitting 2 Inch Hub

Product Description

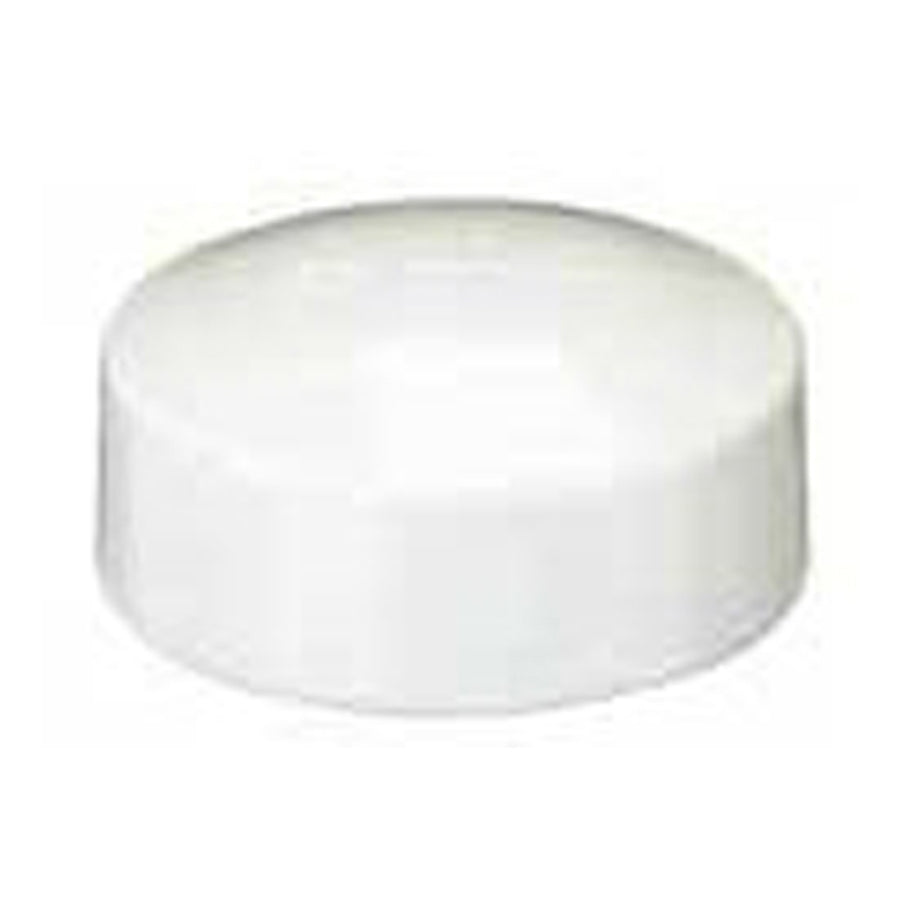

The TIGRE 116-3302 is a 2-inch PVC DWV cap fitting with a hub end connection, injection molded from virgin PVC compound. It is used to terminate or close off drain, waste, and vent pipe runs in residential and commercial plumbing systems. The fitting is manufactured from virgin PVC with a cell classification of 12454, Type 1, Grade 1 as defined in ASTM D1784, and meets or exceeds the performance specifications of ASTM D2665. This fitting is made in the USA and carries NSF certification, making it a code-compliant choice for licensed plumbing contractors and inspectors.

This cap fitting is designed for use in drain, waste, and vent systems where a pipe end must be permanently or temporarily closed. It is suited for residential and light commercial installations, including new construction and retrofit work. The hub end connection accepts standard 2-inch PVC DWV pipe. Geometries and patterns conform to ASTM D3311, and tapered pipe thread profiles conform to ASTM F1498 where applicable. It is a common component in rough-in plumbing work performed by licensed plumbers and pipefitters.

Key Features

• Injection molded from virgin PVC compound, cell classification 12454, Type 1, Grade 1 per ASTM D1784
• Meets or exceeds ASTM D2665 performance specifications for DWV molded fittings
• Conforms to ASTM D3311 geometry and pattern standards
• Conforms to ASTM F1498 for tapered pipe threads on thermoplastic fittings
• NSF certified and manufactured under ISO 9001 quality management standards
• Made in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch PVC DWV piping systems conforming to ASTM D2665 and ASTM D3311 standards.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code and applicable local codes. Before installation, shut off water supply and ensure the pipe end is clean, deburred, and dry. Solvent cement the hub end to the pipe using PVC-rated primer and cement per ASTM D2564. Do not apply excessive cement or force misaligned pipe into the hub socket.

Technical Specifications

• Application: DWV (Drain, Waste, Vent)
• Nominal Size: 2 inches
• End Connection: Hub
• Material: Virgin PVC
• Cell Classification: 12454, Type 1, Grade 1 per ASTM D1784
• Manufacturing Process: Injection Molded
• Applicable Standards: ASTM D2665, ASTM D1784, ASTM D3311, ASTM F1498
• Certifications: NSF, ISO 9001
• Country of Origin: USA

Standard Information

• Brand: TIGRE
• Manufacturer Part Number: 116-3302
