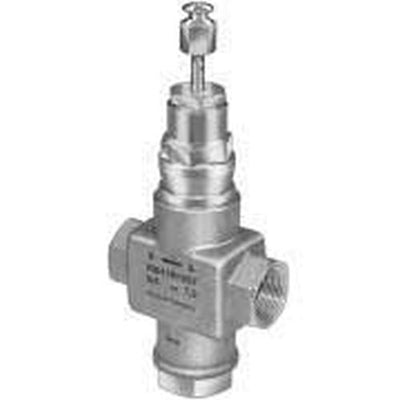

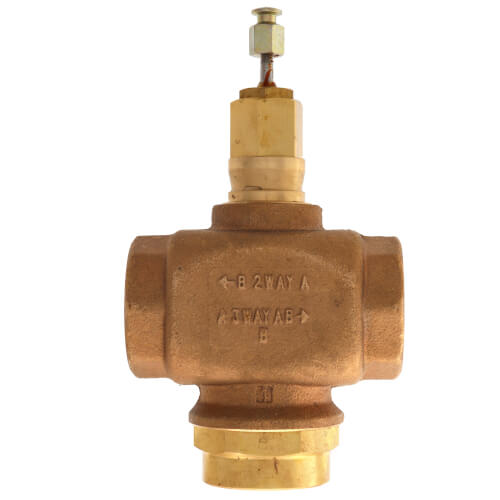

Honeywell V5013N1089 3-Way Mixing Valve 1-1/2 Inch 29.3 Cv

Product Description

The Honeywell V5013N1089 3-Way Mixing Valve is designed for precise flow control in industrial applications. This 1-1/2 inch valve, with a flow capacity of 29.3 Cv, is commonly used for mixing hot and cold water or glycol solutions in HVAC systems.

• 1-1/2 inch NPT female threaded connections
• Durable red brass body and stainless steel stem
• Low seat leakage rating for reliable performance

Product Highlights

This 3-way mixing valve is ideal for HVAC systems, chemical plants, and food production facilities, providing accurate temperature and pressure control.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013N1089
• Weight: 6.1 pounds
• Dimensions: 7 13/16 inches high x 4 3/4 inches wide x 1 13/16 inches deep

Technical Specifications

• Pipe Size: 1-1/2 inches
• Flow Capacity: 29.3 Cv
• Maximum Pressure: 150 psi WOG
• Material: Red brass body, stainless steel stem and seat, brass plug
• Connection Type: NPT Female
• Temperature Range: 36°F to 248°F
• Valve Body Pattern: 3-way
• Applications: HVAC, process industries, chemical plants, food and beverage production
