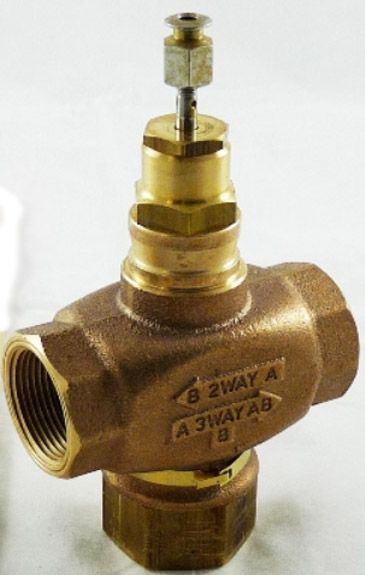

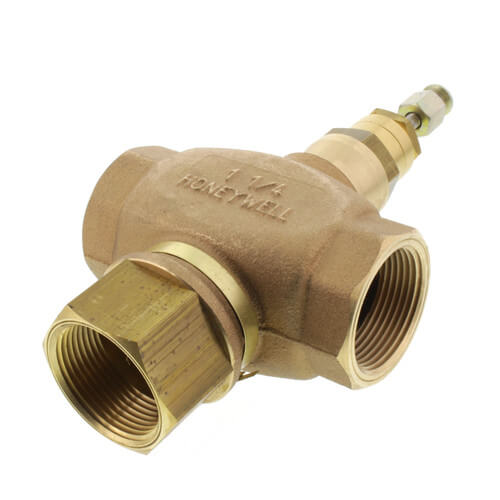

Honeywell V5013N1071 3-Way Mixing Valve 16 Cv 1-1/4 NPT

Product Description

The Honeywell V5013N1071 is a 1-1/4 NPT, 3-way mixing valve designed for industrial applications. It features a 16 Cv capacity for high flow rates. Its durable construction ensures reliable operation in demanding environments.

• High flow capacity
• Reliable in harsh environments
• Compatible with various industrial systems

Product Highlights

This valve is ideal for mixing hot and cold water in heating and cooling systems, controlling fluid flow in process lines, and temperature regulation in industrial processes.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013N1071
• Model: V5013N
• Valve Size: 1-1/4 inches
• Valve Connection: NPT
• Piping Configuration: 3-Way
• Body Material: Bronze
• Valve Application: Steam, Water

Technical Specifications

• Max Pressure: 15 psi WSP, 250 psi WOG
• Weight: 4.00 lbs
• Flow Capacity (Cv): 16 Cv
• Bonnet Size: 1-3/8 inches
• Connection Type: NPT Female
• Ambient Temperature Range: 36°F to 248°F
• Leakage Rate: 0.05% of Cv
• Used With: Q5020/DCA; ML6984/ML7984; Q5001/Modutrol IV Motor; ML6420/21A/25; ML7420/ML7421A/ML7425
