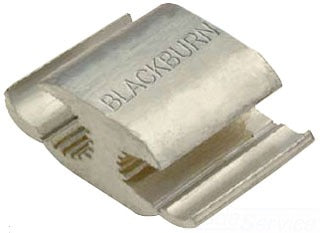

Thomas & Betts WR419 Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Tap: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Die: D, D3

Product Description

The Thomas & Betts WR419 is an aluminum wide range H-Type compression connector designed for reliable electrical connections. This connector accommodates main and tap conductor sizes ranging from four aught to three aught ACSR and stranded wires. It features a durable construction suitable for various applications in electrical systems.

• Constructed with 1350 aluminum alloy for strength and conductivity
• Prefilled with an oxide inhibitor for improved contact
• Fold-in tabs provide a secure interlock

Product Highlights

The WR419 connector is ideal for grounding applications and ensures strong connections without distorting wire shapes.

Product Information

Standard Information

• Manufacturer: Thomas & Betts
• Part Number: 865449

Technical Specifications

• UNSPSC Code: 39121400
• Body Material: 1350 Aluminum Alloy
• Maximum Run Conductor Size: 4/0 AWG ACSR
• Maximum Tap Conductor Size: 4/0 AWG ACSR
• Minimum Run Conductor Size: 3/0 AWG ACSR
• Minimum Tap Conductor Size: 3/0 AWG ACSR
• Shape: H
• Approval: CSA
