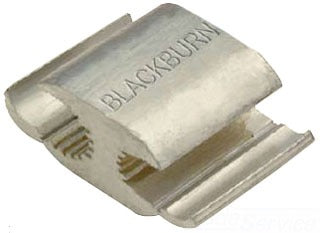

Thomas & Betts WR399 Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Tap: 2/0 - 1 ACSR, 2/0 - 1/0 Str. 3/0 - 2/0 Sol.

Product Description

The Thomas & Betts WR399 is an aluminum wide range H-type compression connector designed for a variety of grounding and bonding applications. This connector supports conductor sizes from four/zero to three/zero ACSR and two/zero to one ACSR for taps. It allows for reliable connections while ensuring electrical conductivity.

• Constructed from 1350 aluminum alloy for strength.
• Features prefilled oxide inhibitor for enhanced performance.
• Designed to maintain conductor shape while providing excellent contact.

Product Highlights

This product is ideal for outdoor or indoor use in electrical systems requiring robust and secure connections.

Product Information

Standard Information

• Manufacturer: Thomas & Betts
• Country of Origin: USA

Technical Specifications

• Approval: CSA
• Body Material: 1350 Aluminum Alloy
• Conductor Material: Aluminum/Copper
• Die Index: D
• Maximum Run Conductor Size: 4/0 AWG ACSR, Stranded
• Minimum Run Conductor Size: 3/0 AWG ACSR, Stranded
• Maximum Tap Conductor Size: 2/0 AWG ACSR
• Shape: H
