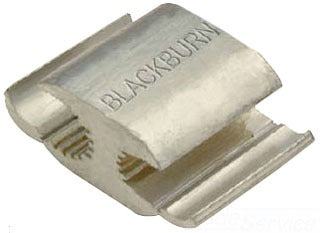

Thomas & Betts WR289 Aluminum Wide Range H-Type Compression Connector Main: 2/0 - 1/0 ACSR, 3/0 - 2/0 Str. Tap: 2-6 ACSR, 1-6 Str., 1/0-6 Sol.

Product Description

The Thomas & Betts WR289 is an aluminum wide range H-type compression connector designed for various electrical applications. It accommodates main conductor sizes ranging from two aught to one aught ACSR and stranded conductors from three aught to two aught. The connector also caters to tap conductor sizes of two to six ACSR, one to six stranded, and one aught to six solid. This versatility makes it suitable for different electrical configurations.

• Designed for wide range ACSR and stranded conductors
• Made of 1350 Aluminum alloy for enhanced conductivity
• Easy installation with fold-in tabs for secure connections

Product Highlights

The connector is prefilled with an oxide inhibitor that maintains contact quality without distorting conductor shapes during installation.

Product Information

Standard Information

• Brand: Thomas & Betts
• MPN: WR289

Technical Specifications

• Body Material: 1350 Aluminum Alloy
• Approval: CSA
• Shape: H
• Maximum Run Conductor Size: 2/0 ACSR, 3/0 AWG Stranded
• Minimum Tap Conductor Size: 6 AWG ACSR
• Die Index: D
• UNSPSC Code: 39121400
• Product UPC: 783786100064
